Choosing an M12 connector for your machine or automation system seems straightforward until you face the list of Ingress Protection (IP) ratings. While it might be tempting to select the highest number, assuming "better is always safer," this approach often leads to unnecessary costs. An IP69K-rated connector is not inherently "better" than an IP67-rated one if the application doesn't involve high-pressure, high-temperature washdowns.
The most practical approach is to match the IP rating to the specific environmental hazards the connector will face. For most standard industrial automation, IP67 provides robust and sufficient protection. Specifying a higher rating is only necessary for continuous water submersion (IP68) or aggressive cleaning protocols (IP69K).
Understanding the IP Rating System
An IP rating consists of two digits. For M12 connectors used in industrial settings, the first digit is almost always '6', while the second digit is where the selection becomes critical.
- First Digit (Solids): A '6' indicates the connector enclosure is "dust-tight," offering complete protection against the ingress of any solid particles, from fine metal shavings to powders found in wood or cement processing.
- Second Digit (Liquids): This number defines the level of protection against water and other liquids. This is the main point of difference between IP67, IP68, and IP69K.
M12 Thread Tightening Torques, Anti-Vibration Mechanisms & Ingress Stability
Mechanical vibrations and improper installation torque are leading causes of long-term sealing degradation in automated machinery:
| M12 Coding & Shell Type | Recommended Mating Torque | Torque Wrench Tolerance | Vibration Resistance Rating (IEC 60512-6-4) | Locking Mechanism Standard | Long-Term Ingress Failure Mode |
|---|---|---|---|---|---|
| M12 Plastic Screw Nut | 0.4 Nm | ± 0.05 Nm | 10g Acceleration (10 – 500 Hz) | Friction Fit | O-ring over-compression or thread stripping. |
| M12 Metal Nut (A / B / D Code) | 0.6 Nm | ± 0.1 Nm | 20g Acceleration (10 – 2000 Hz) | Internal Anti-Vibration Ratchet Detent | Thermal expansion cycling causing seal relaxation. |
| M12 Power (K / S / L / T Code) | 1.0 Nm | ± 0.1 Nm | 20g Acceleration (10 – 2000 Hz) | Hexagon Metal Coupling Nut with Stop-Ridge | Insufficient torque resulting in gap creation under load. |
| M12 Push-Pull Quick Lock | Direct Snap | Toolless Snap-in | 20g Acceleration (10 – 2000 Hz) | Tri-Ball Spring Interlock Mechanism | Contamination of outer locking groove by debris. |

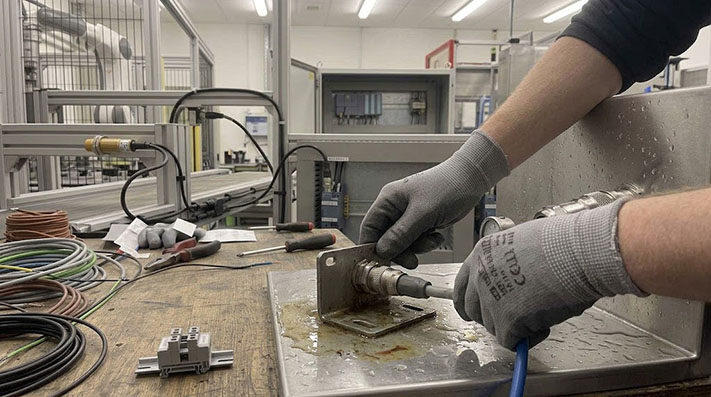

IP67: The Workhorse for General Industrial Automation
An IP67 rating signifies that a connector is protected against the effects of temporary immersion in water.
- Test Condition: Submersion in up to 1 meter of water for 30 minutes.
- Practical Meaning: An IP67-rated M12 connector can withstand splashes, drips, low-pressure sprays, and accidental, short-term submersion without failing. It is fully protected from dust.
- Common Applications:
- General factory automation and conveying systems
- Packaging and material handling equipment
- Robotics cells not subject to washdown
- Indoor control panels and machine wiring
For a huge range of applications inside a factory, IP67 is the appropriate and most cost-effective specification.
IP68: When Water Immersion is Part of the Job
The IP68 rating is a step up, intended for applications involving continuous or long-term submersion in water.
- Test Condition: The conditions for IP68 (depth and duration) are not standardized and are defined by the manufacturer. A connector might be rated for IP68 at 1.5 meters for 60 minutes, while another might be rated for 3 meters for 24 hours.
- Practical Meaning: This rating is for equipment that operates underwater or is installed in areas prone to flooding. It is crucial to check the supplier's datasheet to confirm the specific depth and time rating to ensure it meets your application's needs.
- Common Applications:
- Wastewater treatment plants
- Outdoor sensors or actuators in flood-prone locations
- Submersible pumps and lighting
- Marine and naval equipment

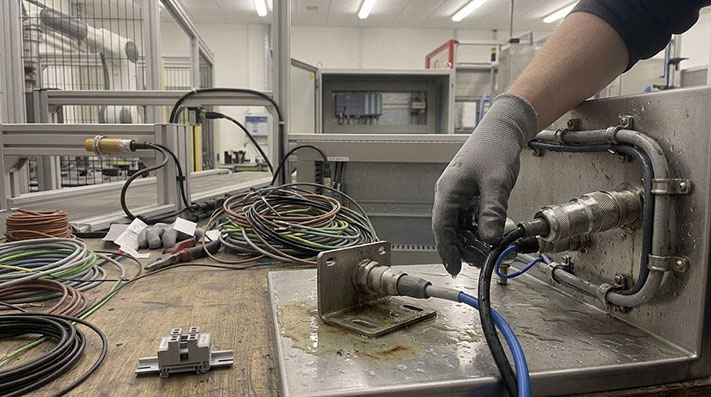

IP69K: Built for High-Pressure, High-Temperature Washdown
IP69K is the highest rating in this common series and is designed to withstand the most aggressive cleaning procedures.
- Test Condition: The connector must resist high-pressure (1160-1450 PSI), high-temperature (80°C / 176°F) water jets sprayed from multiple angles at close range.
- Practical Meaning: This rating is essential where equipment must be sanitized regularly. The connectors are built to prevent water ingress even under intense, directed spray, protecting sensitive electronics from both moisture and thermal shock.
- Common Applications:
- Food and beverage processing equipment
- Pharmaceutical manufacturing
- Heavy mobile equipment (e.g., cement trucks, agricultural machinery) that is regularly power-washed
- Chemical processing plants
Metal Coupling Nut Material Corrosion Resistance & Mechanical Limits
In washdown environments, the metal coupling nut material must resist chemical degradation and salt-spray pitting:
| Metallurgy / Coating Grade | Tensile Strength ($R_m$) | Neutral Salt Spray Resistance (ASTM B117) | Resistance to Chlorine / Halide Pitting | Yield Stress ($R_{p0.2}$) | Suitable Industrial Environment |
|---|---|---|---|---|---|
| Nickel-Plated Brass (CuZn39Pb3) | 350 – 450 MPa | 96 to 168 Hours (Plating breach) | Poor (Pitting under salt build-up) | ≥ 250 MPa | Dry Factory Floor, Assembly Lines (IP67) |
| Anodized Aluminum Alloy (6061-T6) | ≥ 310 MPa | 336 Hours | Moderate | ≥ 276 MPa | Outdoor Sensors, Marine Deck Light (IP68) |
| Stainless Steel 304 (1.4301) | 520 – 720 MPa | 500 Hours | Moderate (Susceptible to Crevice Corrosion) | ≥ 210 MPa | General Packaging, Non-Direct Food (IP68/IP69K) |
| Stainless Steel 316L (1.4404) | 500 – 700 MPa | > 1,000 Hours (No Red Rust) | Exceptional (Mo-bearing 2.0-2.5%) | ≥ 220 MPa | Direct Contact Food, Pharma, Chemical (IP69K) |
Comparison Table: IP67 vs. IP68 vs. IP69K
| Rating | Protection Against Dust | Protection Against Liquids | Key Use Case |
|---|---|---|---|
| IP67 | Dust-Tight | Temporary immersion (1m, 30 min) | General automation, splashes, occasional contact |
| IP68 | Dust-Tight | Continuous immersion (depth/time specified by manufacturer) | Underwater or in areas with standing water |
| IP69K | Dust-Tight | High-pressure, high-temperature jets | Aggressive washdown and sanitization |
Strict Test Parameters & Physical Metrics: IEC 60529 vs. ISO 20653 (DIN 40050-9)
To select the correct connector, engineers must evaluate the precise physical test parameters required by each ingress standard:
| Testing Metric / Parameter | IP67 (IEC 60529) | IP68 (IEC 60529) | IP69K (ISO 20653 / DIN 40050-9) |
|---|---|---|---|
| Water Depth / Pressure | 1.0 Meter (0.1 Bar) | 10.0–50.0 Meters (1.0–5.0 Bar) (Manufacturer Defined) | 80–100 Bar (1160–1450 PSI) High-Impact Spray |
| Water Temperature | +15°C to +35°C (Ambient) | +15°C to +35°C (Ambient) | +80°C (±5°C) Thermal Shock Spray |
| Water Flow Rate | Static Immersion | Static Immersion | 14.0–16.0 Liters / Minute |
| Spray Angles & Distances | N/A (Submersion) | N/A (Submersion) | 0°, 30°, 60°, 90° at 100 mm – 150 mm distance |
| Duration per Test Angle | 30 Minutes Total | Continuous (e.g., 24h, 7 days, or 30 days) | 30 Seconds per Angle (5 RPM Rotating Table) |
| Housing Material Benchmark | Nickel-Plated Brass / Zinc Alloy | Nickel-Plated Brass / Anodized Aluminum | AISI 316L Stainless Steel (1.4404) |
How to Avoid Over-Specifying and Control Costs
The primary difference between these ratings often comes down to materials, seals, and construction, which directly impacts cost. An IP69K connector typically requires more robust housing materials (like stainless steel) and specialized seals to withstand thermal shock and high pressure, making it more expensive than a standard IP67 connector.
O-Ring Sealing Material Compatibility, Hardness, and Compression Set
The long-term seal integrity depends heavily on selecting the correct elastomer material for specific chemical washdowns and ambient temperature profiles:
| Sealing Elastomer | Shore Hardness | Operating Temp. Range | Resistance to CIP Alkaline / Acid Cleaners | Resistance to Synthetic Machine Oils | Compression Set (24h at 100°C) | Recommended IP Application |
|---|---|---|---|---|---|---|
| Nitrile Rubber (NBR) | A 70 | -30°C to +100°C | Poor (Swells in Acid/Ozone) | Good (Mineral/Hydraulic Oils) | ≤ 15% | Standard Industrial IP67 |
| Fluorocarbon (FKM / Viton) | A 75 – A 80 | -20°C to +200°C | Fair to Good (Strong Acid Resistant) | Exceptional (High Temp/Oils) | ≤ 10% (High Retention) | High Temp / Chemical IP67 / IP68 |
| Ethylene Propylene (EPDM) | A 70 | -40°C to +135°C | Exceptional (Ecolab Washdown Solutions) | Poor (Swells badly in Oils) | ≤ 12% | Food & Beverage Washdown IP69K |
| Hydrogenated NBR (HNBR) | A 75 | -30°C to +150°C | High (Dilute Acids/Bases) | Exceptional | ≤ 12% | Heavy Mobile Machinery IP69K |
Before defaulting to the highest rating, ask these questions:
- Will the connector ever be submerged? If no, you likely don't need IP68. If yes, for how long and at what depth?
- What is the cleaning procedure? If the area is cleaned with a damp cloth or low-pressure spray, IP67 is sufficient. If it involves high-pressure, hot-water power washing, IP69K is mandatory.
- Where is the connector located? A connector inside a sealed electrical cabinet on a machine has very different requirements than one mounted externally on the arm of a food-grade robot.
Get the Right Connector for Your Environment
Choosing the correct IP rating is a critical design decision that balances performance, reliability, and budget. Over-specifying adds unnecessary cost, while under-specifying leads to premature failure, downtime, and safety risks.
At ConnecLink, we help machine builders, integrators, and MRO teams specify the right connector assembly for the job. By understanding your specific operating conditions, we can help you find a solution that delivers the necessary protection without inflating your project costs.
When preparing an RFQ, providing details about your application is key. Tell us about your operating environment, including dust levels, exposure to liquids, and cleaning protocols. We can then recommend the most appropriate and cost-effective connector configuration for your needs.
