Category Overview
Automation OEMs, system integrators, and factory MRO engineers consistently face a common bottleneck: sourcing connector cable assemblies that combine precise mechanical fit, verified electrical performance, and internationally recognized compliance documentation -- without committing to high-volume minimum orders or enduring multi-week lead times. The M12 & M8 Sensor/Actuator Cables category addresses this gap directly, providing fully documented, field-ready connectivity solutions that slot into existing automation architectures without re-engineering.
Whether you are commissioning a new production line, replacing worn harnesses in an existing installation, or qualifying components for a new machine design, this product category delivers the configuration flexibility -- coding variants, jacket chemistries, orientation options, and cable length -- that rigid catalog suppliers routinely decline. Every assembly is produced through ISO 9001 audited manufacturing partners in the Yangtze River Delta, with full traceability documentation available on request.
Typical Applications
High-flex cable assemblies routed through robot joints and drag chains, requiring continuous-flex ratings, compact connector profiles, and oil-resistant jacket materials.
Sensor and camera cable assemblies for vision-guided automation cells, where signal integrity, shielding effectiveness, and secure connector locking are critical to system reliability.
Structured sensor/actuator wiring within control cabinets and distributed I/O panels, connecting PLCs, drives, and field devices across Profibus, DeviceNet, and AS-i networks.
High-reliability interconnects for automated test and measurement stations in semiconductor fab and battery formation equipment, where EMI shielding and thermal stability are non-negotiable.
Ruggedized cable assemblies for autonomous guided vehicles and mobile robots, requiring vibration resistance, compact routing, and IP67 protection against wash-down and particulate ingress.
Wash-down rated assemblies with stainless-body connectors and food-grade jacket materials, meeting hygiene-zone requirements while maintaining IP68 ingress protection in high-pressure cleaning environments.

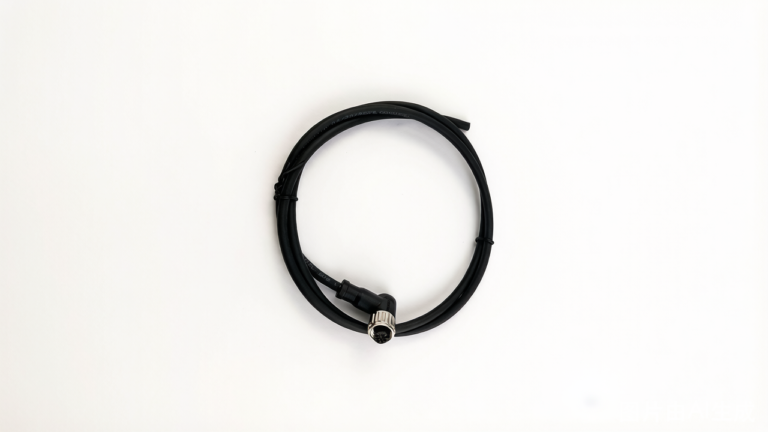

Product Range · M12 & M8 Sensor/Actuator Cables
Configuration Guide
Use the table below to identify the key parameters you need to confirm before requesting a quotation. Each parameter directly affects connector compatibility, certification scope, and lead time.
| Parameter | Available Options | Why It Matters | Action |
|---|---|---|---|
| Connector Coding | A-Code, D-Code, X-Code, S-Code, T-Code, K-Code, L-Code, Other | Determines protocol compatibility (sensor I/O, Ethernet, power) and physical keying -- wrong coding = non-mating | Required |
| Pin Count | 3-pin, 4-pin, 5-pin, 8-pin, 12-pin, custom | Must match the mating connector on the sensor, actuator, or controller exactly | Required |
| Gender | Male, Female, Male to Female, Custom | Defines the plug/socket configuration at each cable end -- must match field device and panel port | Required |
| Orientation | Straight, Right Angle (90°), Both ends custom | Impacts routing space in confined enclosures and drag chain installations | Recommended |
| Cable Jacket Material | PUR, PVC, TPE, Pending specification | Determines chemical resistance, flex life, temperature range, and compliance with food-grade or outdoor requirements | Recommended |
| Cable Length | Standard lengths or fully custom (specify in meters) | Non-standard lengths are a core capability -- eliminates excess cable and reduces installation labor | Recommended |
| IP Rating Required | IP67 (dust-tight, temporary immersion), IP68 (continuous submersion) | Governs sealing specification for the connector body and overmold -- must match installation environment | Recommended |
| Target Market / Certification | CE (EU), cRUus/UL (North America), TÜV, RoHS, custom | Determines which compliance documentation must accompany the assembly for customs and end-user approval | Required |
| Shielding | Unshielded, braided shield, foil + drain, double-shielded | Critical for EMI-sensitive environments (servo drives, VFDs, high-frequency switching) -- affects signal integrity | Optional |
| LED Indicator Option | No LED, Yellow LED, Green LED, Bi-color LED | Provides visual connection status feedback for field maintenance -- specify if required for the installation | Optional |
RFQ Preparation
A complete RFQ reduces back-and-forth and allows our engineering team to return an accurate quotation with full compliance documentation within 4 business hours. Use this checklist before submitting.
Submit RFQ NowRFQ Checklist
Product Type & Category
Specify the connector family (e.g., M12 A-Code, M8, M23) and whether this is a sensor cable, Ethernet assembly, or power harness.
Connector Configuration
Coding variant, pin count, gender (male/female), orientation (straight/right angle), and connector A/B details for both cable ends.
Quantity & Delivery Schedule
Prototype quantity (even 1 piece is acceptable), followed by estimated production volume and preferred delivery window.
Application & Environment Description
Describe the installation context: robotics, outdoor, wash-down, drag chain, high-flex cycling, EMI-sensitive environment, temperature range.
Target Market & Destination Country
Specify the end-use country (e.g., USA, Germany, Canada) to determine which regulatory framework applies to the assembly.
Certification Requirements
List required certifications: CE Declaration of Conformity, TÜV test report, cRUus (UL) recognition, RoHS compliance statement, IP rating test certificate.
Drawing, Datasheet, or Sample Photo
Attach any existing connector drawing, competitor part number, or photo of the mating connector. This significantly reduces clarification rounds.
Documentation Notice
IP67 and IP68 ratings must be confirmed against the relevant IEC 60529 test report for the specific connector body and overmold configuration. Self-declared ratings without test evidence are not accepted for industrial procurement.
CE Declaration of Conformity, TÜV Rheinland test certificates, and cRUus (UL) recognition documents must specify the exact connector model, cable construction, and rated parameters. Generic or family-level certifications require scope confirmation before quotation.
Voltage and current ratings stated in product data must be verified against the specific conductor cross-section and contact material used in the assembly. Rated values can vary between connector body and cable combinations.
RoHS compliance and REACH SVHC declarations for cable jacket materials (PUR, PVC, TPE) should be confirmed via material safety data sheets. Food-grade or halogen-free requirements must be specified at inquiry stage.
Profinet, EtherCAT, and other industrial Ethernet protocols impose specific requirements on cable category, shielding construction, and connector coding. Protocol compatibility should be confirmed with reference to the relevant fieldbus specification before final order.
Full material traceability documentation -- including component origin, production batch records, and outgoing inspection reports -- is available on request for every shipment and should be specified if required for your incoming quality process.
All documentation requests should be submitted alongside the RFQ. Our engineering team will confirm availability and scope before quotation.
Frequently Asked Questions
Yes. Custom cable length is a core capability of this product category. Unlike standard catalog suppliers who offer fixed lengths (0.3m, 0.5m, 1m, 2m, 5m), we produce assemblies to any specified length from 0.1m upward. Simply state your required length in millimeters or meters when submitting your RFQ. Non-standard lengths are produced at the same lead time as catalog variants and do not incur a premium for orders above prototype quantity.
There is no enforced minimum order quantity. We regularly fulfill prototype requests from 1 to 10 pieces for engineering qualification and machine build-out phases. This is specifically designed for OEM R&D departments and system integrators who need to validate connector performance before committing to production volumes. State your prototype quantity in the RFQ and we will include both prototype and production unit pricing in the quotation.
For outdoor installations with UV exposure and temperature cycling, PUR (polyurethane) jacket is the standard recommendation due to its hydrolysis resistance and mechanical flexibility across a wide temperature range (-40°C to +80°C). For food processing wash-down environments, PUR combined with stainless-body connectors is the typical configuration. PVC is suitable for dry indoor environments with cost sensitivity. TPE offers enhanced flexibility for drag chain and continuous-flex applications. If you are uncertain, describe your installation environment in the RFQ and our engineering team will recommend the appropriate jacket specification.
Standard shipment documentation includes a CE Declaration of Conformity, RoHS compliance statement, and product datasheet with rated electrical parameters. TÜV Rheinland test reports, cRUus (UL) recognition certificates, IP rating test certificates, and material traceability records are available on request and should be specified in the RFQ. For North American market shipments, we recommend specifying cRUus documentation at inquiry stage to avoid delays in your incoming inspection process.
Fieldbus compatibility depends on three factors: connector coding (which determines the physical mating interface and keying), cable electrical specification (conductor count, wire gauge, shielding construction, and characteristic impedance for Ethernet protocols), and the protocol-specific wiring assignment (pin-out). When submitting your RFQ, provide the fieldbus protocol (e.g., Profinet, EtherCAT, DeviceNet, Profibus DP), the mating connector part number or drawing from the field device, and any existing cable assembly you are replacing. Our engineering team will cross-reference these against the relevant fieldbus specification and confirm compatibility before issuing a quotation. For Profinet and EtherCAT assemblies, we also confirm compliance with the respective organization's cabling specification (IEC 61784, ETG.1000).
