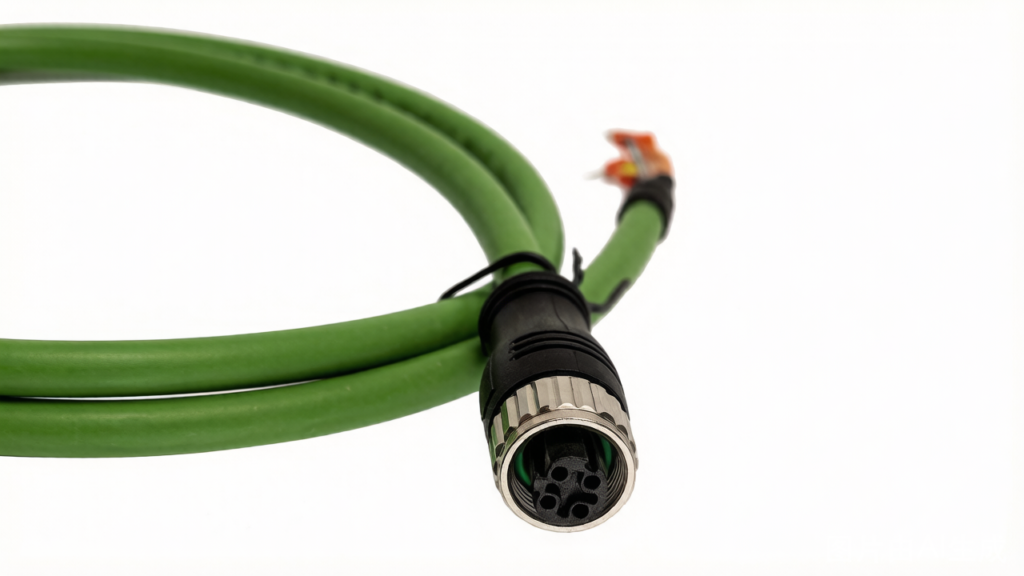

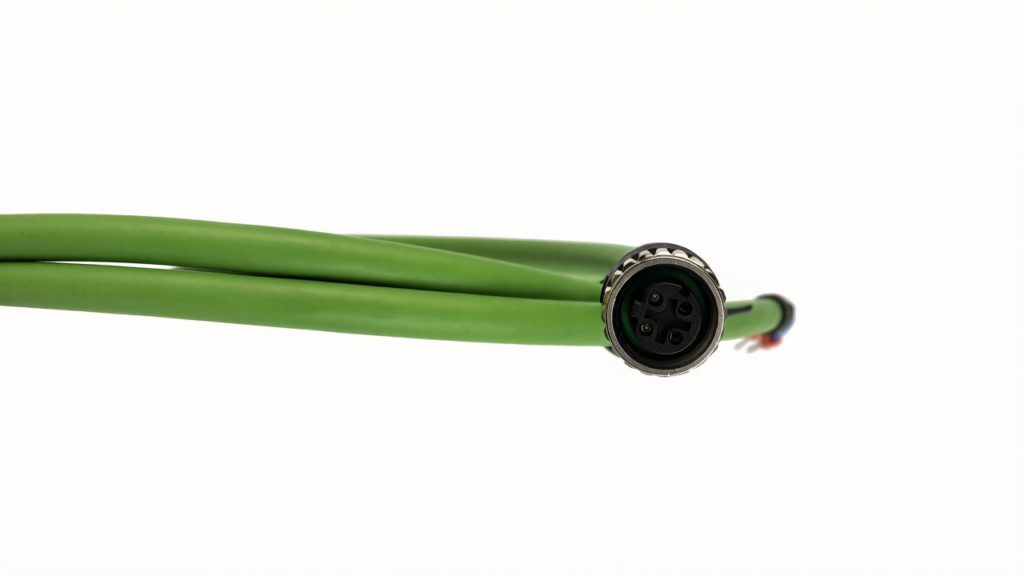

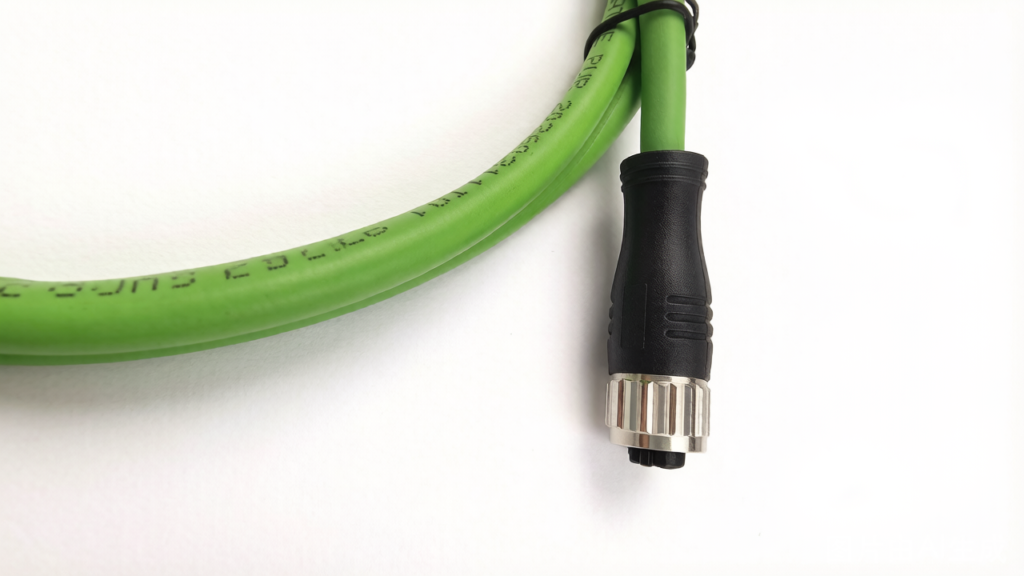

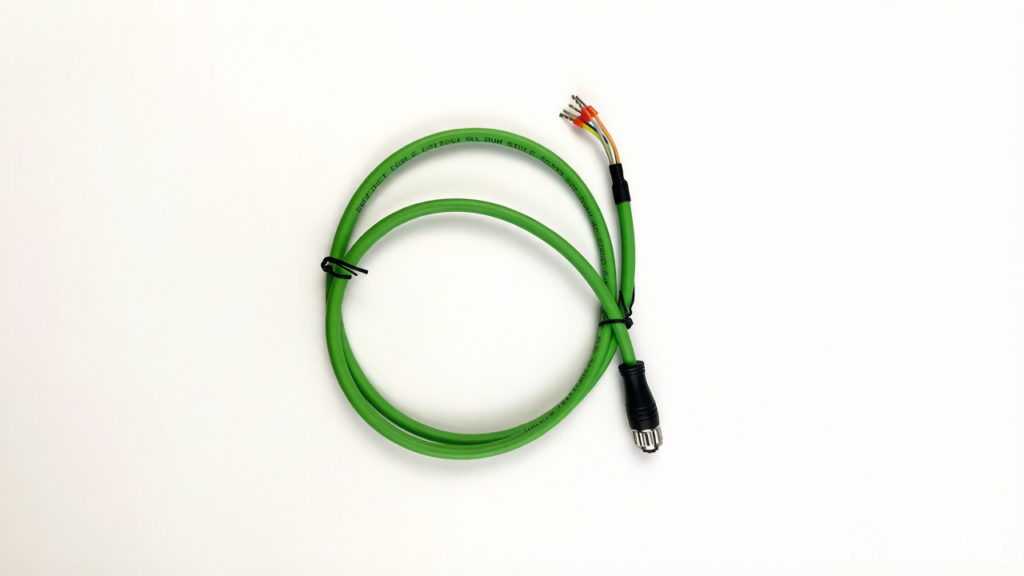

M12 D-Code 4-Pin Industrial Ethernet Cable Assembly for Profinet & EtherCAT
Industrial Ethernet cable assembly for PLC, fieldbus, Profinet, EtherCAT, and automation communication wiring — with configurable termination and color-coded jackets.
Typical Applications
- Profinet / EtherCAT network drops to I/O modules and remote stations
- Industrial switch uplinks in control cabinets
- Fieldbus replacement projects migrating from legacy connectors
- Green-field automation panel builds requiring color-coded network identification
Configuration Options (PN Builder)
| Step |
Dimension |
Options (label = code) |
| 1 |
Series |
M12 D-Code 4-Pin = M12D |
| 2 |
Orientation |
Straight = ST / Right-Angle = RA |
| 3 |
Cable Color/Material |
Profinet Green PUR = GN-PUR / Black PVC = BK-PVC |
| 4 |
Tail Termination |
Double-ended M12 = M12 / M12-to-RJ45 = RJ45 / Stripped+Ferrules = STF |
| 5 |
Length |
1m = 1M / 3m = 3M / Custom = XXM |

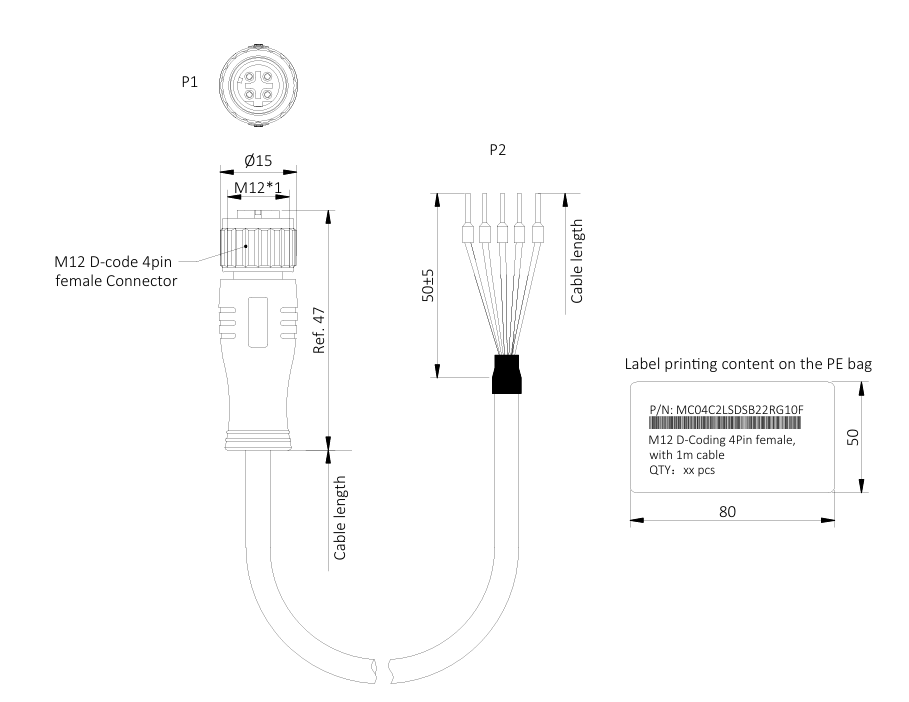

Example: M12D-RA-GN-PUR-STF-3.2M
For use in Profinet and EtherCAT industrial networks (neutral compatibility wording).
Technical Data
| Mechanical and Electrical |
| Reference standard | IEC 61076-2-101 |
| Rated current | 4A |
| Rated voltage | 250V |
| Impulse voltage | 2500V |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
| EMC Shielding | Shielded |
| Locking system | M12 x 1.0 screw |
| Tightening torque | Recommended: 0.4 Nm / Max: 0.8 Nm |
| Material |
| Male contact | Non |
| Female contact | Phosphor bronze |
| Contact plating | Au (Gold) |
| Insert | TPU+GF, Black |
| Overmold | TPU, Black |
| Screw nut | Brass, CNC |
| Screw nut plating | Nickel plated |
| O-ring | FKM |
| Cable |
| Cable style | PROFINET |
| Conductor material | Stranded Tinned Copper |
| Conductor cross-section | 4C*22AWG |
| Wire colors | Yellow, Orange, White, Blue |
| Shielding | AL + Braid |
| Sheath / insulation material | PUR, Green |
| Outer diameter | Ø6.5 ± 0.3mm |
| Bending radius (Static) | ≥10× outer Ø |
| Bending radius (Dynamic) | ≥15× outer Ø |
| Drag chain bending | 5 million |
| Cable length | 1000 +50/-10 mm (Excluding Connector) |
| Environmental |
| Rated temperature | Static: -40 ~ 80°C, Dynamic: -25 ~ 80°C |
| Protection degree | IP67 |
| Environmental Compliance | ROHS |
| Pollution degree | 3 |
RFQ Fields
- Protocol (Profinet / EtherCAT / Ethernet/IP / other)
- Orientation preference (straight / right-angle)
- Cable color and material
- Quantity and target market
FAQ
- Q: Is D-Code compatible with my existing Profinet network? A: Yes — D-Code 4-pin follows the standard Profinet/EtherCAT pinout used by major PLC vendors. Confirm your device's connector marking before ordering.

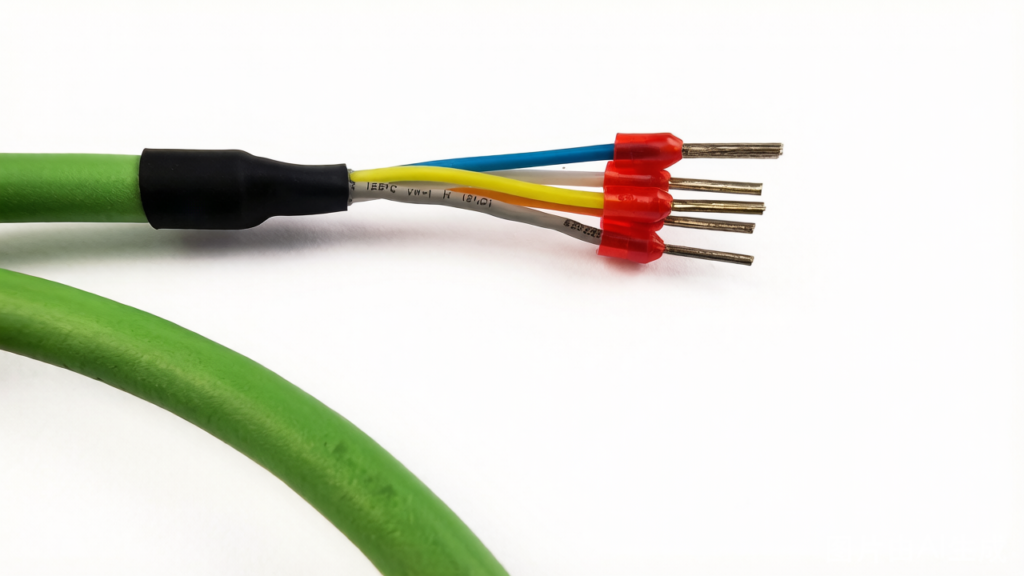

- Q: Can I get stripped ends with ferrules? A: Select
STF termination — we ship with wires stripped, ferrule-crimped, and ready for your terminal block or cabinet entry.
- Q: What's the difference between green PUR and black PVC? A: Green PUR is the conventional Profinet color for easy identification and offers higher oil/flex resistance. Black PVC is cost-effective for indoor cabinet use.
