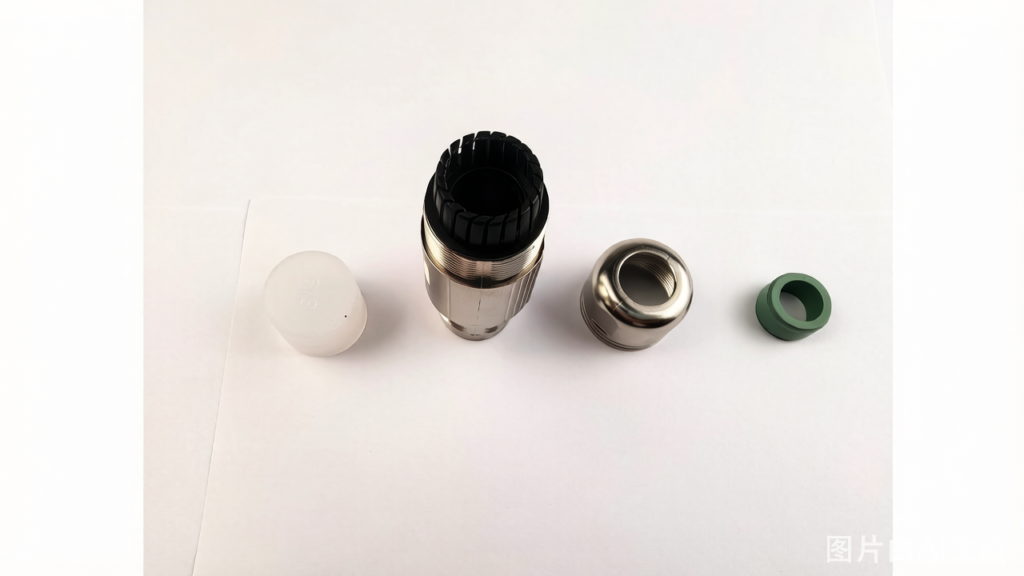

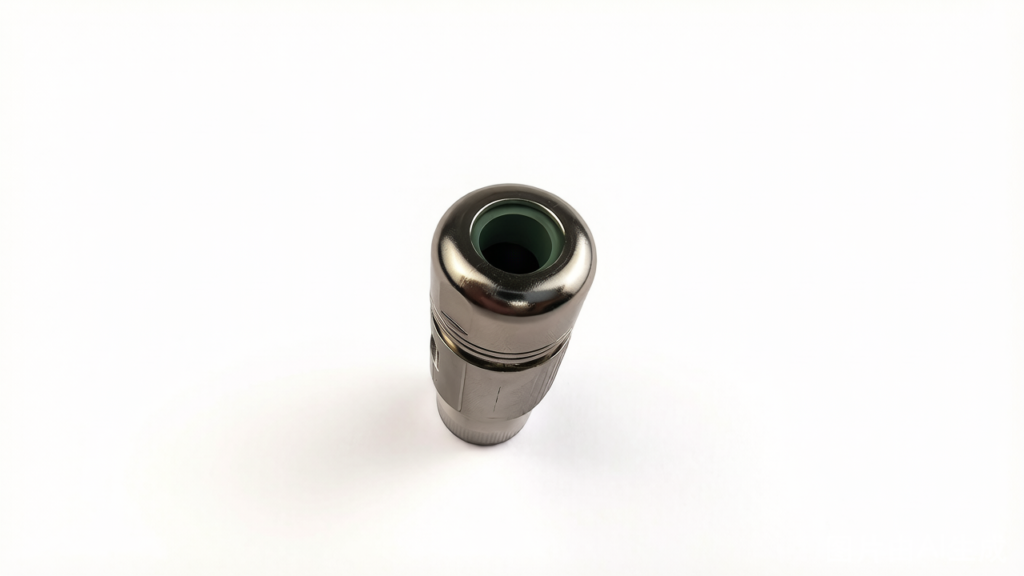

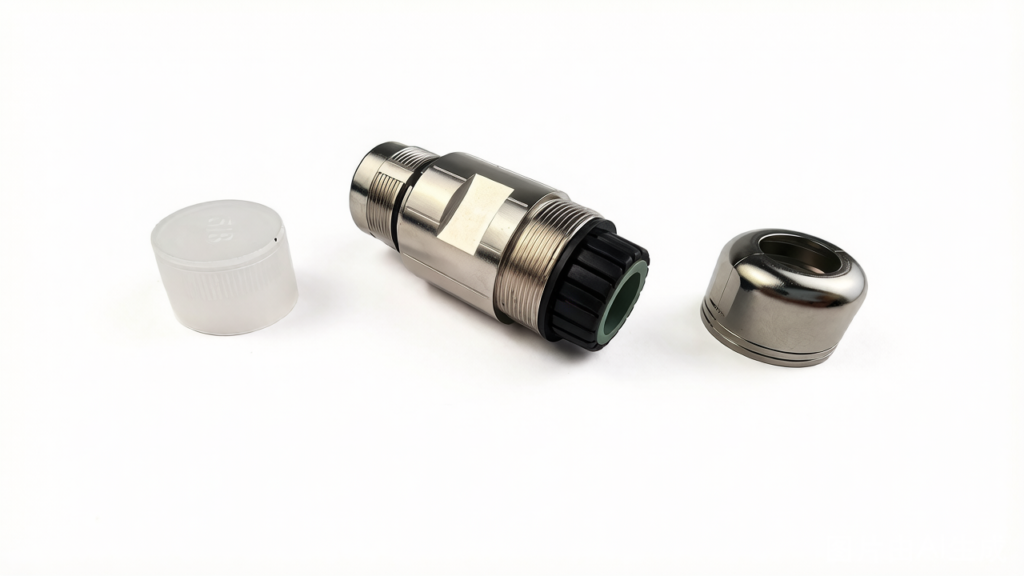

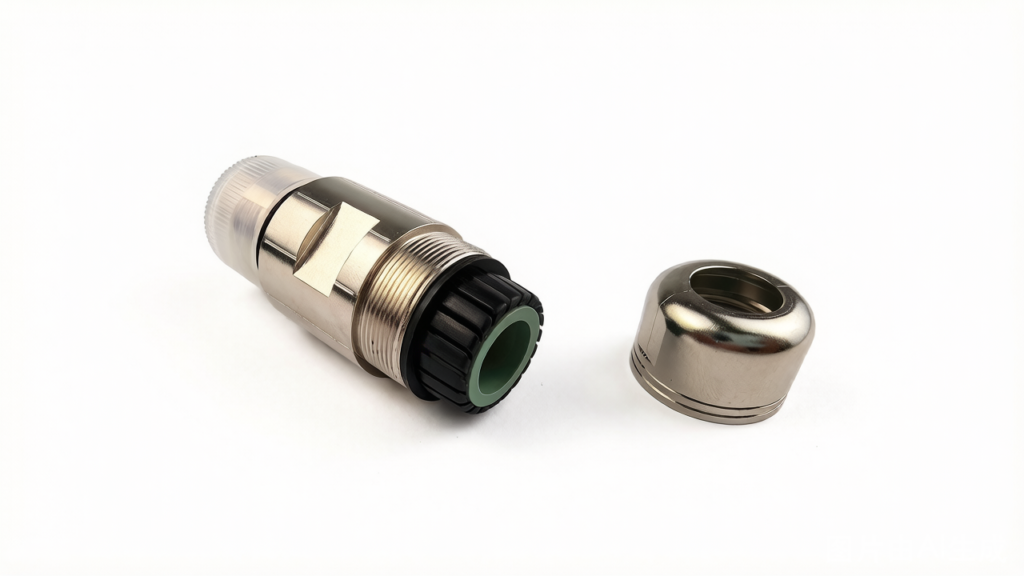

M23 Heavy-Duty Servo Motor & Encoder Cable Series — Custom High-Flex Robotic Harnesses
Premium M23 cable assembly series engineered for servo motor power, encoder feedback, and robotics applications — built to drawing with customizable pin count, shielding, and motion-type optimization.
This family is configured by request (not a fixed part number). The form collects your parameters + drawing and generates an engineering RFQ summary.
Typical Applications
- Servo motor power and feedback for major industrial drive platforms
- Robot joint harnesses (6-axis articulated arms)
- CNC machine tool axis interconnects
- Linear motor and torque motor cabling
- High-flex drag-chain installations on packaging machinery
Configuration Parameters (Request Builder — NOT a fixed PN)
| Parameter |
Options |
Notes |
| Application |
Power (motor supply) / Signal (encoder feedback) |
Determines pin count range |
| Pin Count |
6-pin / 8-pin (power); 12-pin / 17-pin / 19-pin (signal) |
By application |
| Servo Target Reference |
Drive-Cliq style / Generic servo / Custom Schematic |
Label only — not a compatibility claim |
| Motion Type |
Dynamic (drag-chain grade) / Static (standard routing) |
Affects cable jacket selection |
| Drawing Upload |
[File upload] |
Required — upload schematic/wire map/OEM part number |
Output: Engineering RFQ summary, e.g.: M23 request — App: Power, Pins: 12, Target ref: Drive-Cliq style, Motion: Dynamic. Drawing uploaded.
We engineer a build-to-matching harness based on your specifications and drawing — no compatibility claim is made for any third-party brand.
Technical Data

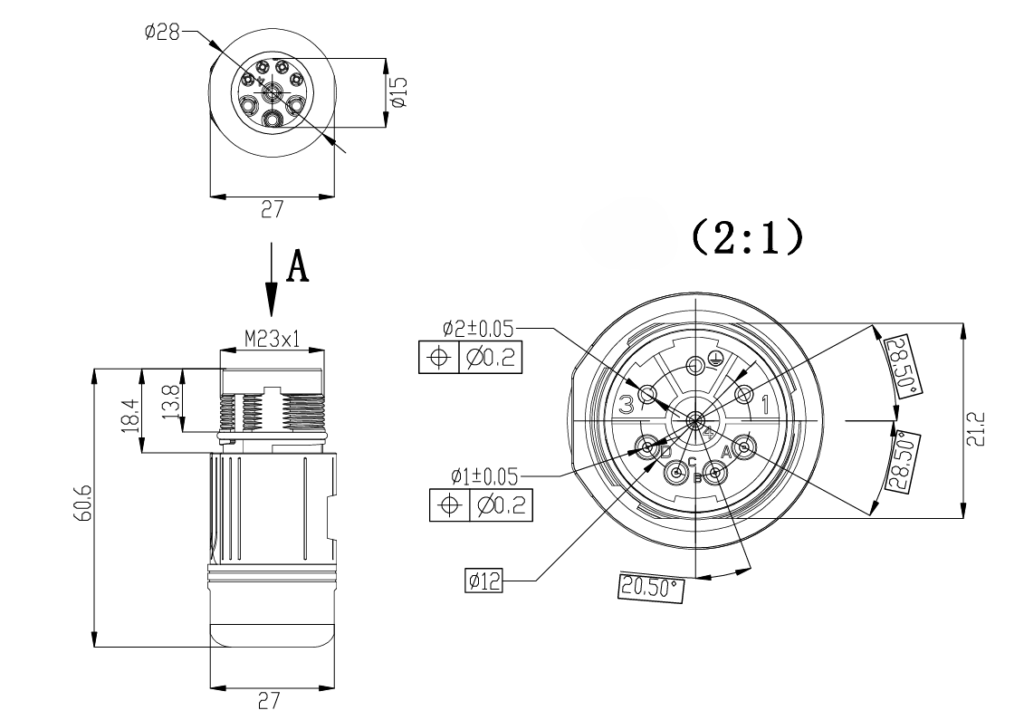

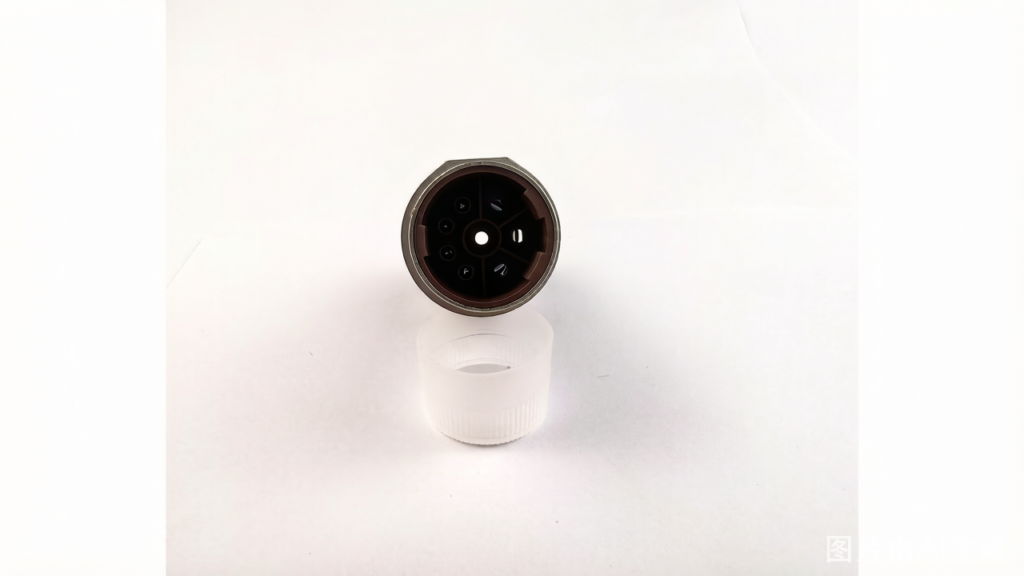

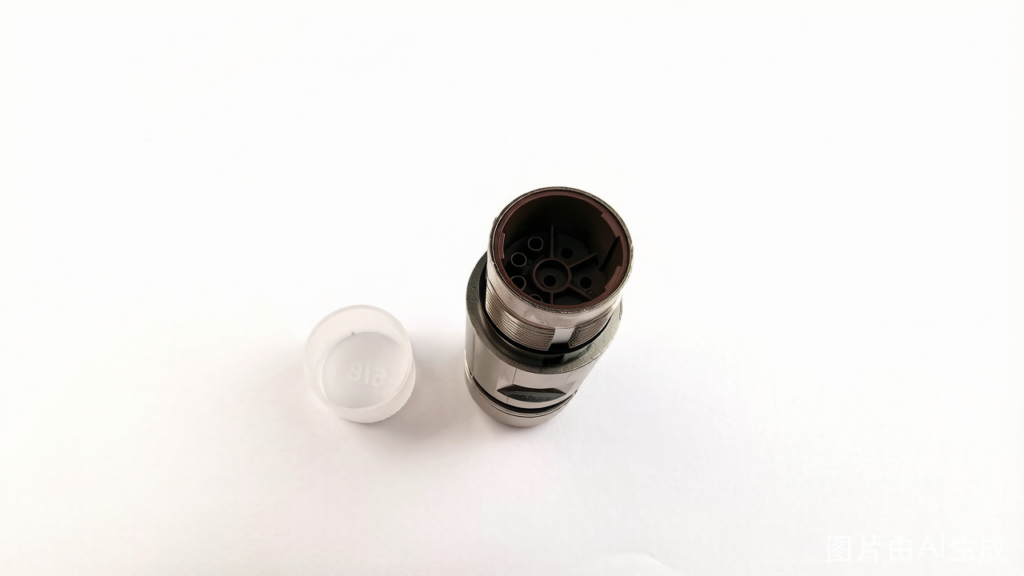

Dimensional reference: M23-OH-4+3+PE outline drawing — Thread M23×1, 4+3+PE pinout, Ø28 mm outer diameter, 60.6 mm length, 27 mm width. Contact pin diameter Ø1 mm / Ø2 mm.
| Mechanical and Electrical |
| Insulation resistance |
≥100 MΩ |
| Contact resistance |
≤5 mΩ |
| Mating endurance |
>800 Cycles |
| Protection degree |
IP68 (in locked condition) |
| Material |
| Connector insert |
PA |
| Connector contacts |
Brass with gold plated |
| Connector body |
Zinc alloy with nickel plated |
| Contactor nut/screw |
Zinc alloy with nickel plated |
| Seal/O-ring |
FKM/NBR |
| Environmental |
| Ambient temperature |
-40°C ~ +125°C |
RFQ Fields (enhanced for M23)
- Application type (Power / Encoder / Both)
- Motor brand and model reference (for interface matching only)
- Pin count or OEM part number
- Motion type (dynamic drag-chain / static)
- Cable length and routing path description
- Technical drawing / wire map upload (strongly recommended)
FAQ
- Q: Can you match my existing servo cable? A: Yes — provide your existing cable's OEM part number, photo, or pinout diagram. We engineer a build-to-match harness based on your specifications.
- Q: What if I don't know the pin count? A: Upload your servo motor manual page or the connector photo. Our engineering team identifies the correct configuration and confirms before production.
- Q: Do you support drag-chain rated cable? A: Yes — specify "Dynamic" motion type and approximate bend radius in your RFQ. We'll recommend the appropriate high-flex jacket and shielding.
