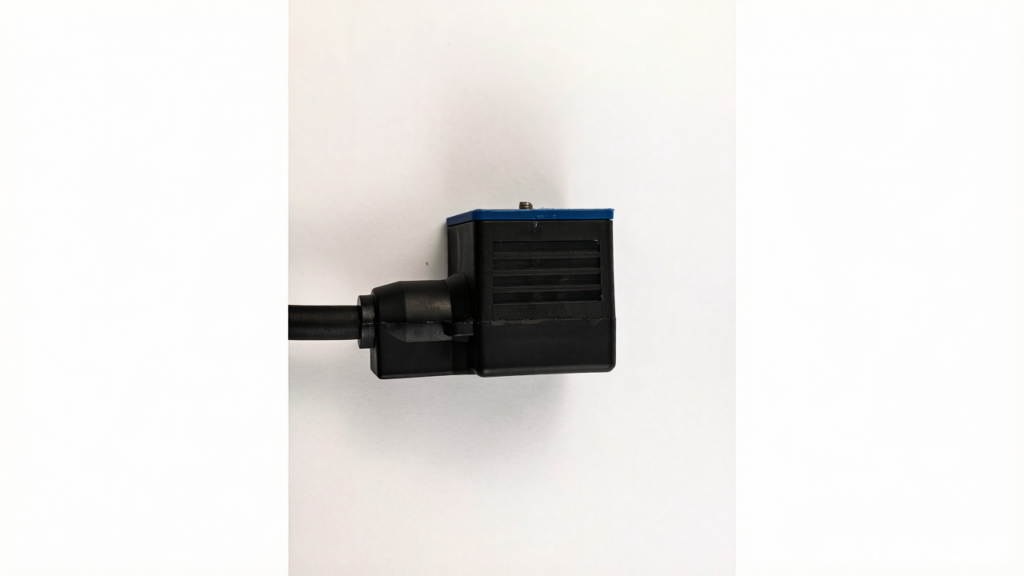

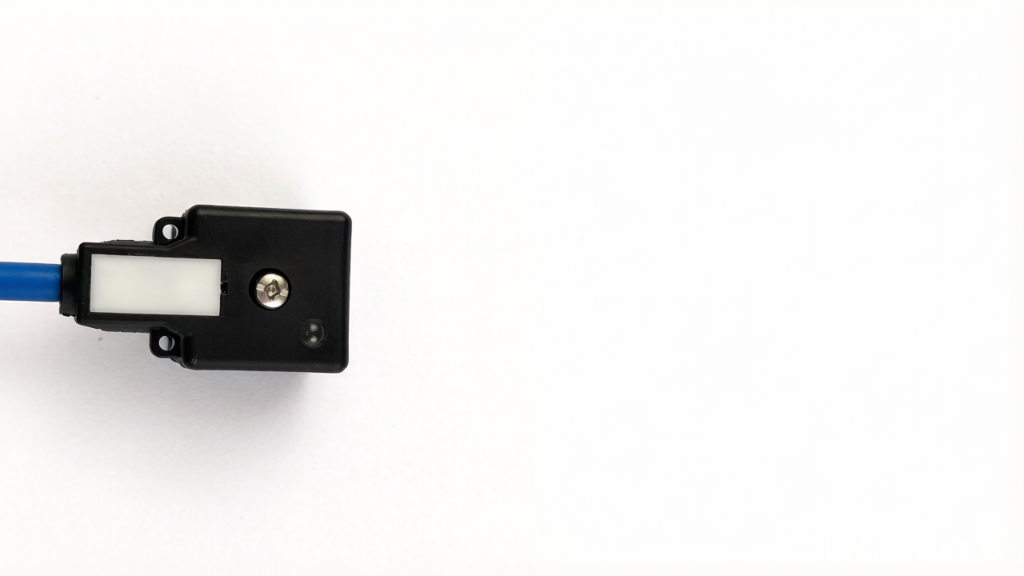

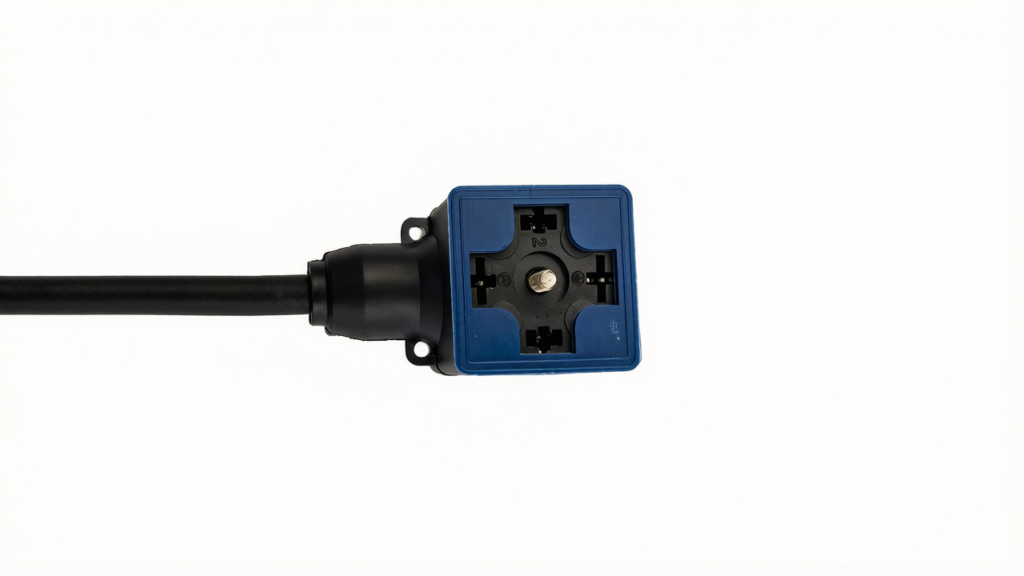

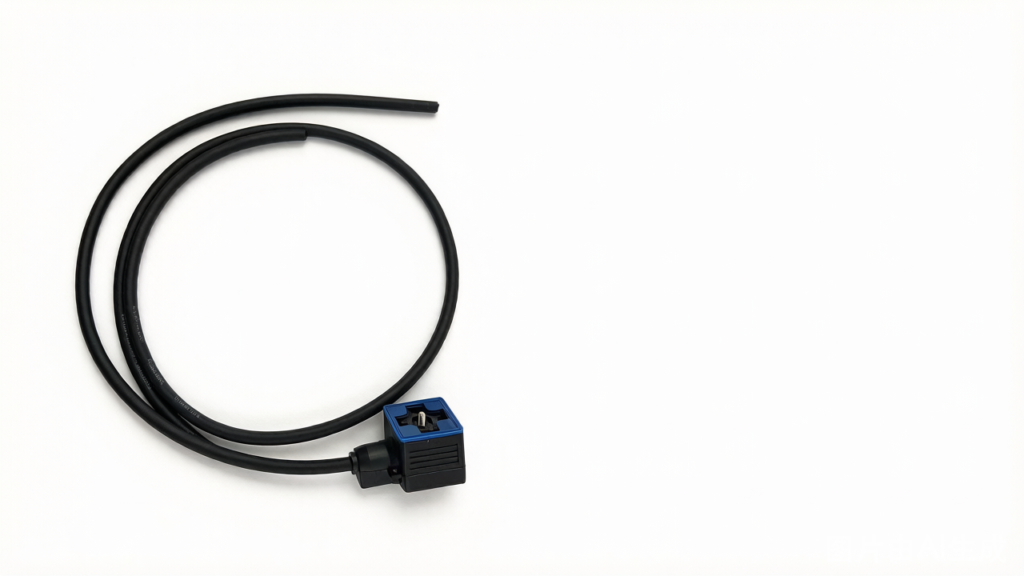

Form A DIN EN 175301-803 Solenoid Valve Connector Series — 18mm Pin Spacing Matrix
Complete Form A (18 mm pin spacing) solenoid valve connector product family with integrated LED diagnostics, surge protection, and multiple cable/junction-box options — built for hydraulic manifolds, pneumatic valves, and pressure switches.
Typical Applications
- Hydraulic manifold valve coils (18 mm DIN spacing)
- Pneumatic directional control valves
- Pressure switch connections
- Process valve actuation in chemical/oil environments
- Mobile equipment (agricultural, construction) valve banks
Configuration Options (PN Builder)
| Step |
Dimension |
Options (label = code) |
| 1 |
Family Form |
Form A 18mm = DV-A |
| 2 |
Voltage |
24V AC/DC = 24V / 110V AC = 110V / 230V AC = 230V |
| 3 |
Internal Circuitry |
LED only = LED / LED+Varistor = MOV / LED+Diode = DIO |
| 4 |
Cable/Jacket |
Molded PUR = M-PUR / Molded PVC = M-PVC / Bare Gland = G-PG9 |
| 5 |
Wire Length |
1M / 3M / 5M / NONE (junction box only) = NONE |
Example: DV-A-24V-MOV-M-PUR-3M

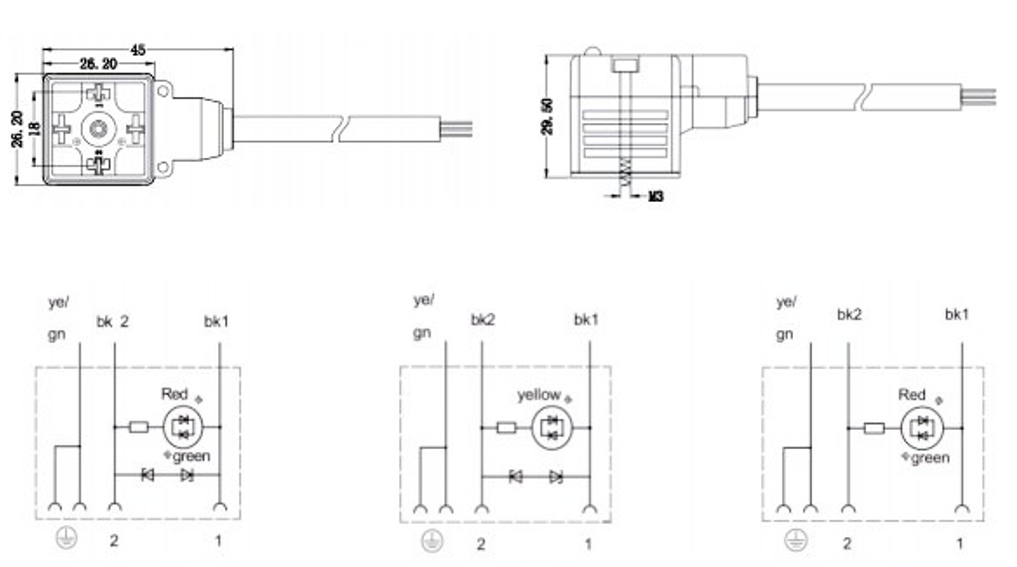

Technical Data
| Mechanical and Electrical |
| Reference standard |
EN 175301-803 |
| Form factor |
Form A (18 mm pin spacing) |
| Operating voltage |
24V AC/DC |
| Rated current |
4A |
| LED indicator |
Red / Green |
| Protection degree |
IP67 |
| Material |
| Connector body |
PA 66 + 30% FV (Glass Fiber reinforced Nylon) |
| Cable |
| Jacket material |
PVC / PUR |
| Conductor cross-section |
0.5 mm² / 0.75 mm² |
RFQ Fields
- Operating voltage
- Coil type (DIN 43650 / EN 175301-803)
- Internal circuit requirement (LED / surge protect / diode)
- Cable or junction box preference
- Quantity and target industry
FAQ
- Q: What is the difference between LED, MOV, and DIO options? A: LED shows power status visually. MOV (varistor) absorbs voltage spikes to protect the coil. DIO (flyback diode) protects against inductive kickback. Choose based on your control system's protection needs.
- Q: Is this compatible with my existing Form A valve? A: Form A with 18 mm spacing follows DIN EN 175301-803 — it's the most common industrial solenoid valve standard worldwide. If your valve has 18 mm spaced holes, it should mate.
- Q: Do you offer junction box (no cable) versions? A: Yes — select
NONE for length and G-PG9 for termination to receive a bare connector with PG9 gland entry for your own wiring.
