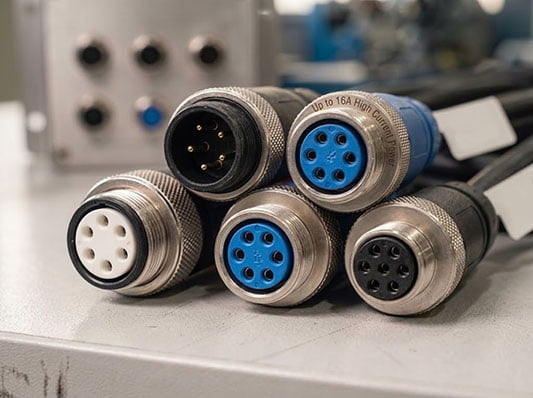

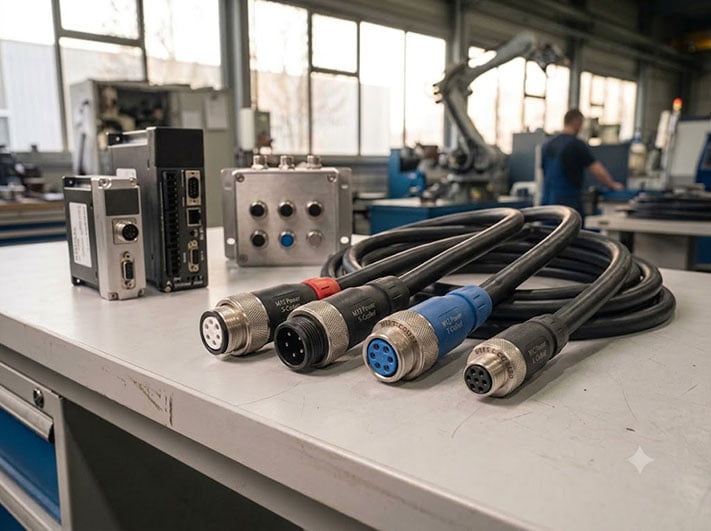

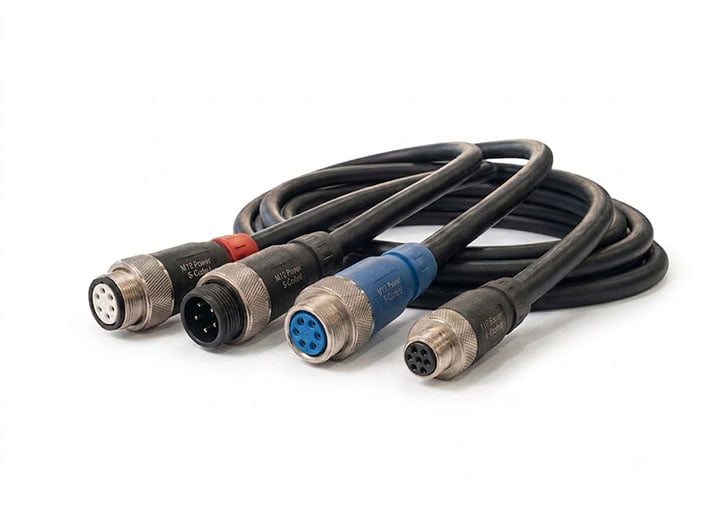

M12 Power Cable & Field Connector Series — S, T, K, L-Coded High-Current Link
Compact high-current M12 power delivery system designed to replace bulky traditional power plugs — supporting AC motors, DC bus supplies, and compact servo drives in micro-space environments.
Typical Applications
- Servo drive power input (24VDC bus)
- AC motor power feed through small form-factor
- DC power distribution on machine baseplates
- Compact I/O module power supply
- Replacement of larger M23 or DB-style power connectors where space-constrained
Configuration Options (PN Builder)
| Step |
Dimension |
Options (label = code) |
| 1 |
Series |
M12 Power = M12P |
| 2 |
Coding |
S / T / K / L |
| 3 |
Poles/Pins |
2P (2+PE) / 3P (3+PE) / 4P |
| 4 |
Shell & Term |
Molded Cable = MD / Field Screw Joint = FWS |
| 5 |
Length |
1m / 5m / 10m (custom available) |
Example: M12P-T-4P-FWS
Current/voltage ratings vary by coding — specify your requirement in the RFQ; our team matches the correct configuration.
Technical Data
| Mechanical and Electrical |
| Reference standard |
IEC 61076-2-111 |
| Contact resistance |
≤8mΩ |
| Insulation resistance |
≥100MΩ |
| EMC Shielding |
Available |
| Mating endurance |
>500 cycles |
| Material |
| Connector insert |
TPU+PA |
| Connector contacts |
Brass with gold plated |
| Over-molding |
TPU |
| Connector nut/screw |
Brass with nickel plated |
| Seal/O-ring |
FKM |
| Environmental |
| Ambient temperature |
Fixed: -40°C ~ +80°C; Flexible: -20°C ~ +80°C |
| Protection degree |
IP68 (in locked condition) |
M12 Power Coding Reference
| Coding |
Voltage |
Current |
Application |
| S |
630V AC |
12A |
AC Power |
| T |
63V DC |
12A |
DC Power |
| K |
630V AC |
12A |
Servo Power |
| L |
63V DC |
16A |
Field Power |
RFQ Fields
- Required voltage (24VDC / 230VAC / other)
- Required current draw estimate
- Coding type (if known)
- Pole count
- Cable length and installation environment
FAQ
- Q: Which M12 power coding should I choose? A: S/K coding typically serves AC motor applications. T/L coding handles DC power and higher-density needs. Share your voltage/current requirements and we'll confirm the optimal coding.
- Q: Can these carry full motor current? A: Each coding has a specific ampacity rating. Provide your motor's current draw in the RFQ and our team will verify compatibility before quoting.
- Q: Do you have field-wireable power connectors? A: Yes — select
FWS (Field Screw Joint) for on-site termination into your cabinet or junction box.
Request Connector Configuration & Quote
