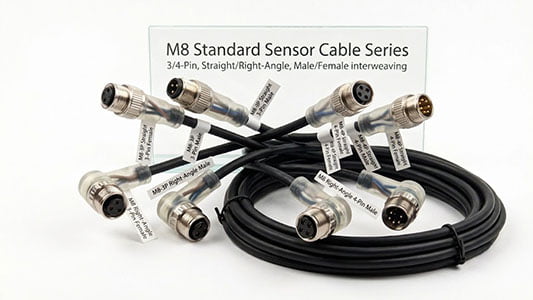

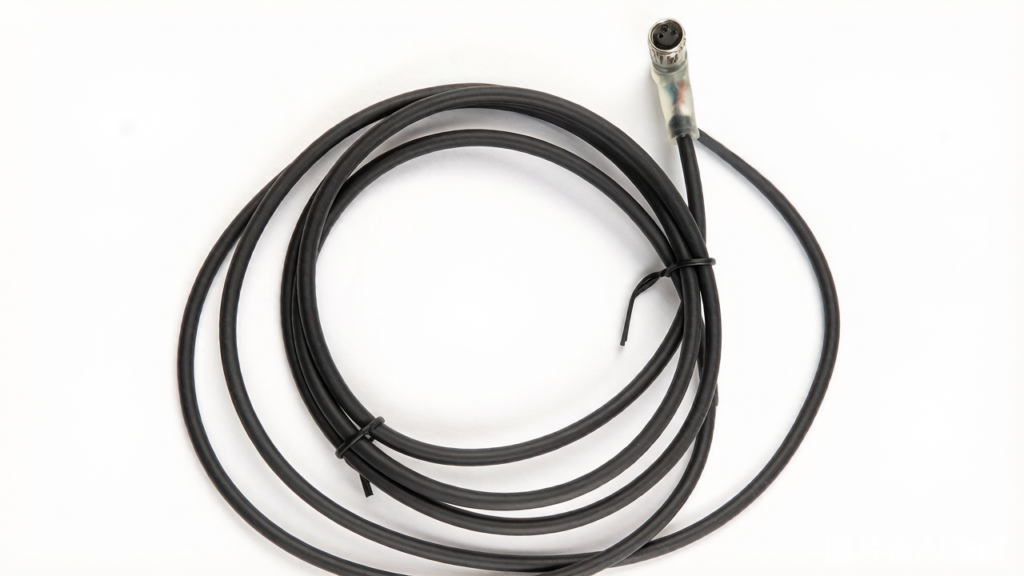

M8 Standard Sensor Cable Series — Miniaturized 3-Pin & 4-Pin Interconnect
Ultra-compact M8 (×1.0 mm thread) sensor cable family engineered for miniature pneumatic cylinders, grippers, micro-sensors, and tight-space automation wiring.
Typical Applications
- Miniature pneumatic cylinder sensors
- Compact gripper position detection
- Small-form-factor photoelectric switches
- Tight-space sensor mounting on robot EOATs
- Micro-sensor replacement in medical-device automation
Configuration Options (PN Builder)
| Step |
Dimension |
Options (label = code) |
| 1 |
Series |
M8 Standard = M8S |
| 2 |
Pins |
03 (3 pins) / 04 (4 pins) |
| 3 |

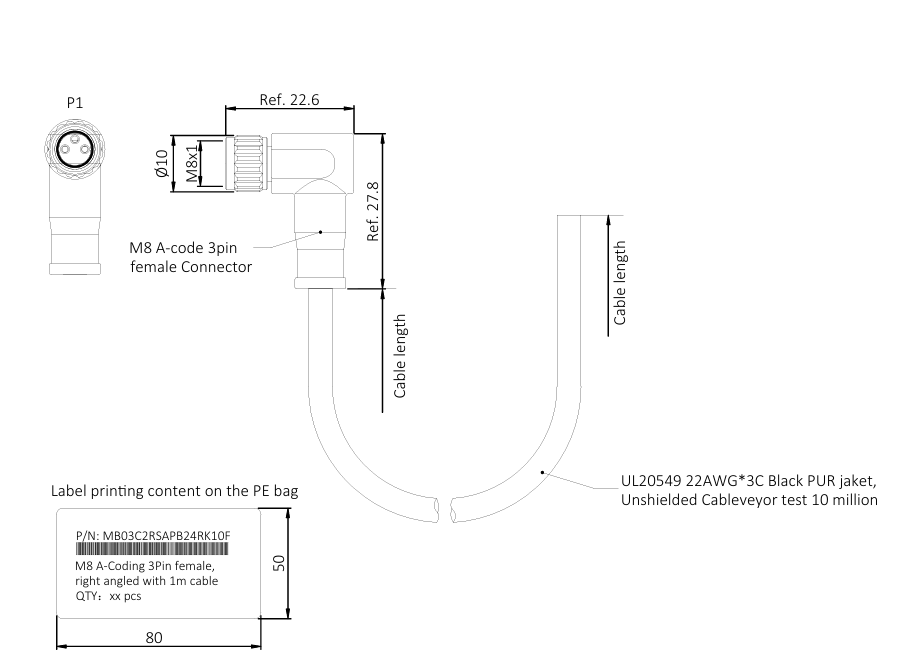

Gender & Orient |
Male Straight = MS / Male RA = MR / Female Straight = FS / Female RA = FR |
| 4 |
Cable Jacket |
High-Flex PUR = PUR / Std Black PVC = PVC / Grey PVC = GY-PVC |
| 5 |
Length |
1M / 2M / 5M / Custom |
Example: M8S-03-FR-PUR-2M
Technical Data
| Mechanical and Electrical |
| Reference standard |
IEC 61076-2-104 |
| Rated current |
3A |
| Rated voltage |
60V |
| Impulse voltage |
1500V |
| Contact resistance |
≤5mΩ |
| Insulation resistance |
≥100MΩ |
| EMC Shielding |
Unshielded |
| Locking system |
M8 × 1.0 screw |
| Tightening torque |
Recommended: 0.2 Nm, Max: 0.4 Nm |
| Material |
| Male contact |
Non |
| Female contact |
Phosphor bronze |
| Contact plating |
Au (Gold) |
| Insert |
TPU+GF |
| Overmold |
Transparent TPU |
| Screw nut |
Brass, CNC |
| Screw nut plating |
Nickel plated |
| O-ring |
FKM |
| Cable |
| UL AWM style |
UL20549 |
| Conductor material |
Stranded Tinned Copper |
| Conductor cross-section |
3C × 24AWG |
| Wire colors |
Brown, Blue, Black |
| Shielding |
Non |
| Sheath / insulation material |
PUR, Black |
| Outer diameter |
Ø4.3 ± 0.15mm |
| Bending radius (Static) |
≥5 × outer Ø |
| Bending radius (Dynamic) |
≥7.5 × outer Ø |
| Drag chain bending |
10 million |
| Cable length |
1000 mm (+50 / -10, Excluding Connector) |
| Environmental |
| Rated temperature |
Static: -40 ~ 80°C, Dynamic: -25 ~ 80°C |
| Protection degree |
IP67 |
| Environmental Compliance |
ROHS |
| Pollution degree |
3 |
RFQ Fields
- Pin count (3 or 4)
- Gender and orientation
- Cable length and jacket type
- Quantity and application
FAQ
- Q: How does M8 compare to M12? A: M8 uses an M8 × 1.0 mm thread (about half the size of M12). It's ideal for space-constrained mini-sensors. M8 carries lower current (typically ≤3A) compared to some M12 power variants.
- Q: Are M8 connectors compatible across brands? A: M8 A-coded 3-pin and 4-pin follow IEC 61076-2-104 dimensions. They are mechanically interchangeable with standard M8 A-coded connectors from other manufacturers.

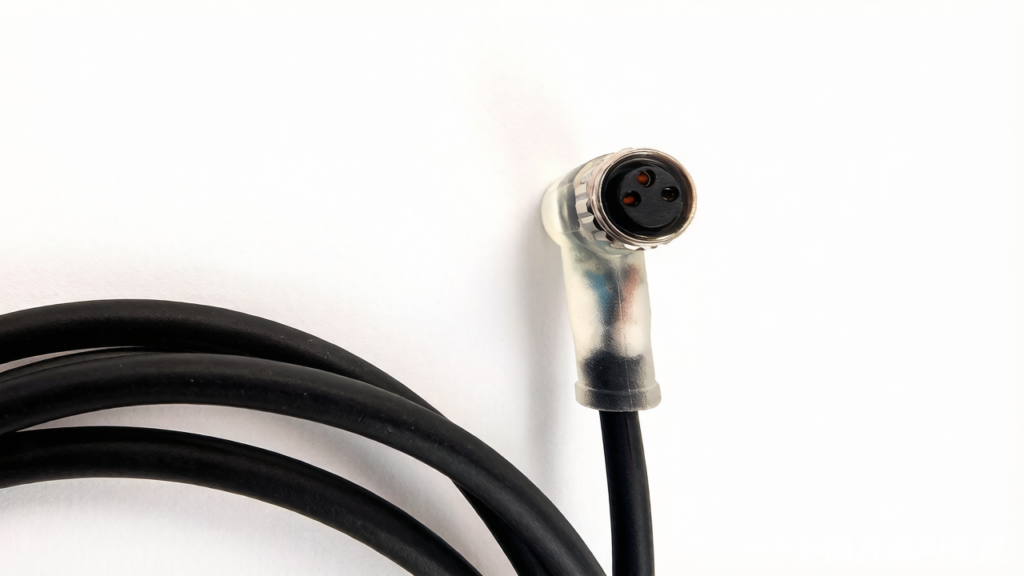

- Q: Do you offer right-angle M8? A: Yes — MR (male RA) and FR (female RA) options are available. Confirm panel clearance before specifying right-angle.
