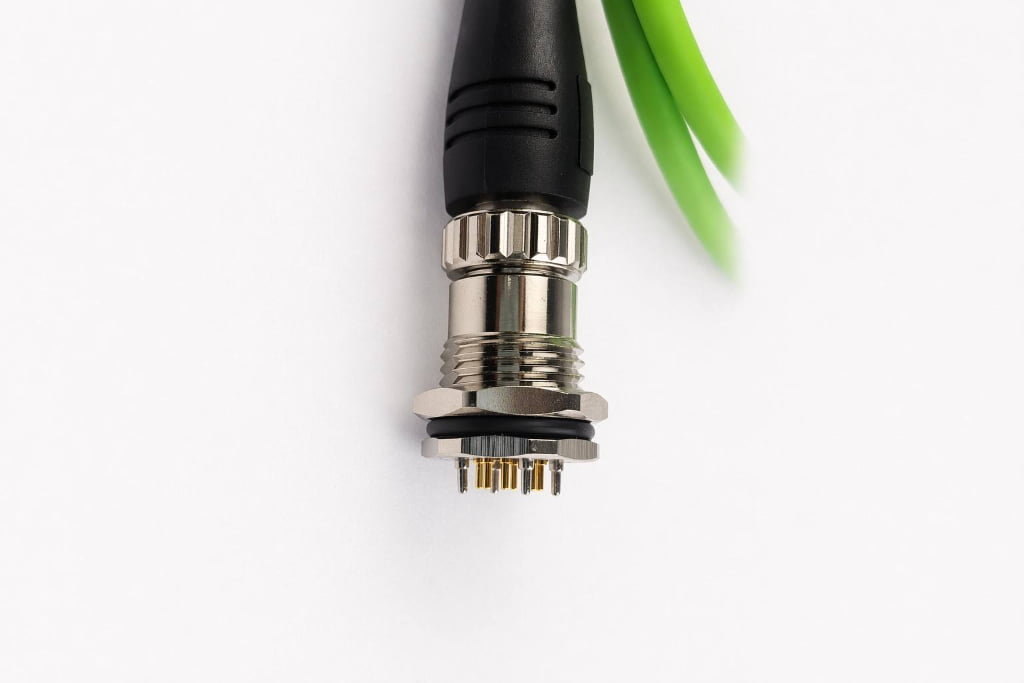

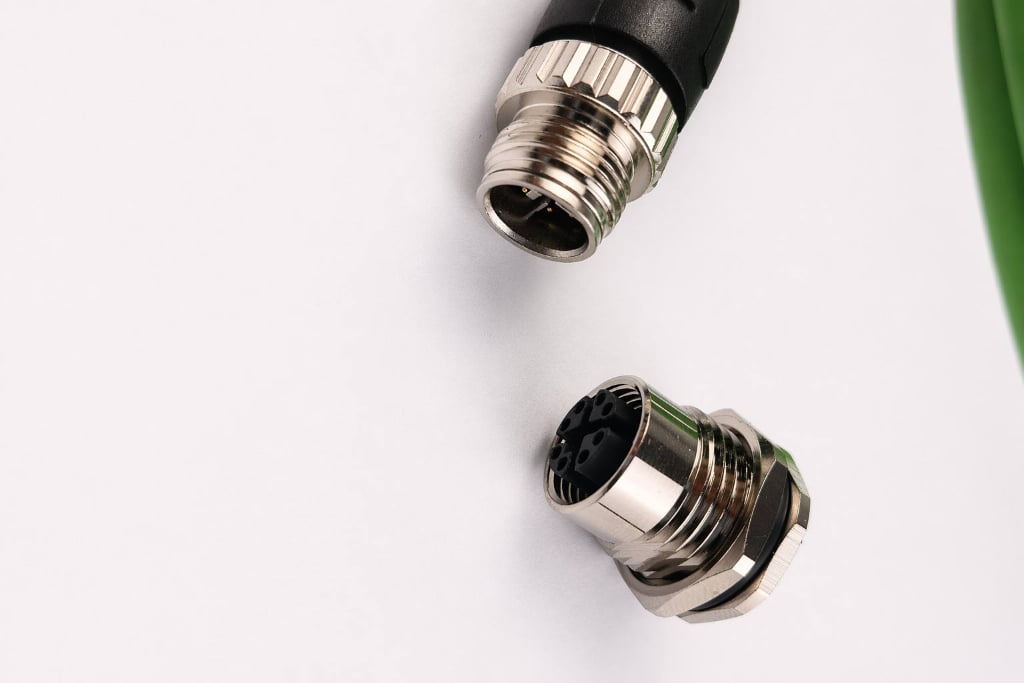

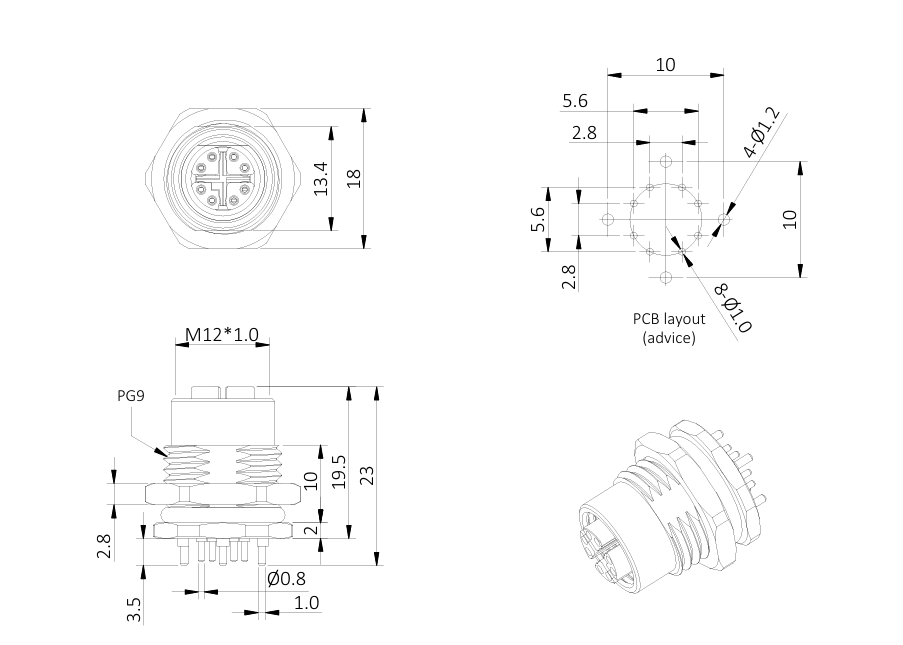

M12 X-Code 8-Pin High-Speed Industrial Ethernet Cable & Connectivity Series
High-speed industrial Ethernet cable assemblies for machine vision, high-speed camera networks, and harsh-environment data transmission — configurable from M12-to-RJ45 to fully custom harness builds.
Typical Applications
- Machine vision systems (GigE Vision cameras, industrial CMOS sensors)
- Industrial Ethernet backbone (high-speed industrial Ethernet infrastructure)
- Robotic cell data links between vision and motion controllers
- Drag-chain rated cable runs in CNC and packaging machinery
- Field-replaceable network drops in food & beverage plants
Configuration Options (Part Number Builder)
| Step |
Dimension |
Options (label = code) |
| 1 |
Series |
M12 X-Code 8-Pin = M12X |
| 2 |
Connection Type |

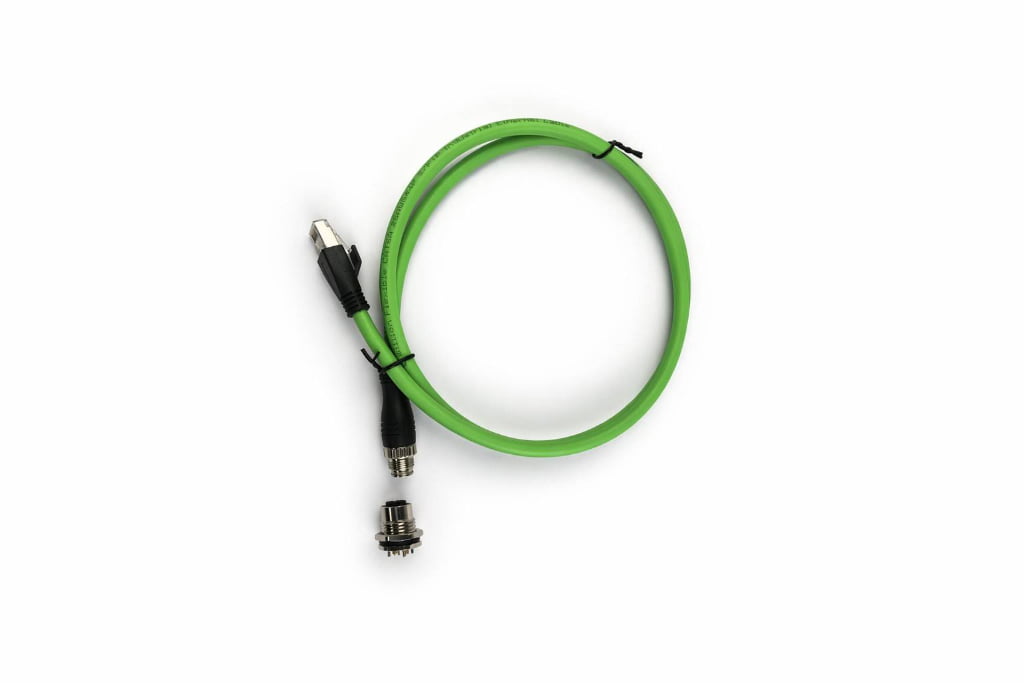

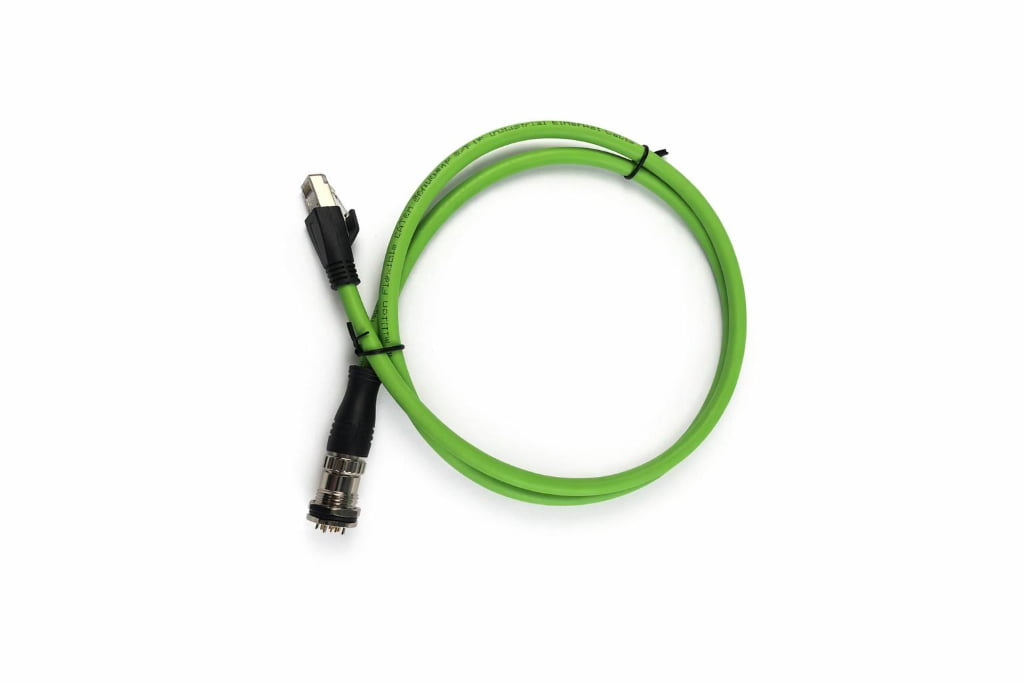

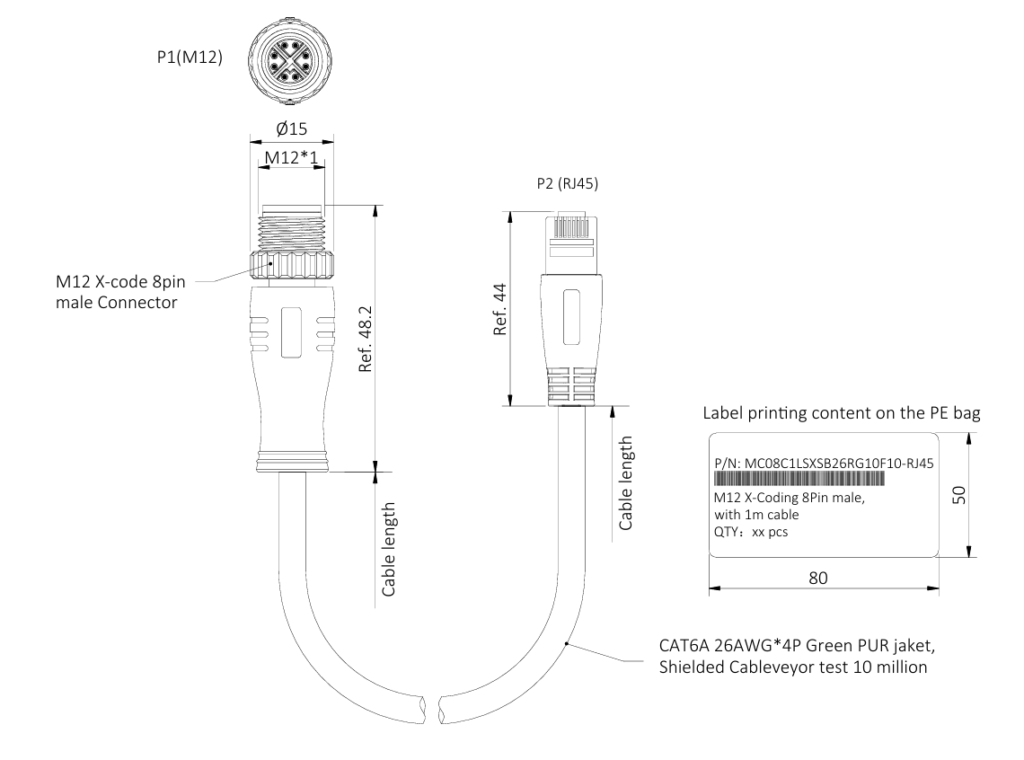

M12 to RJ45 = RJ / M12 to M12 = MM / M12 to Open End = OE |
| 3 |
Cable Jacket |
High-Flex PUR = PUR / Standard PVC = PVC |
| 4 |
Shielding |
Double Shielded (SF/UTP) = SF / Standard Shielded = S |
| 5 |
Length |
1m = 1M / 5m = 5M / Custom = XXM (e.g. 2M) |
Example configured code: M12X-RJ-PUR-SF-2M
Note: bandwidth and flex-cycle ratings are confirmed per SKU before quotation. Specify your requirement in the RFQ.
Technical Data
| Category |
Parameter |
Value |
| Mechanical and Electrical |
Reference standard |
IEC 61076-2-109 |
| Rated current |
0.5A |
| Rated voltage |
50V AC, 60V DC |
| Impulse voltage |
800V |
| Contact resistance |
≤5mΩ |
| Insulation resistance |
≥100MΩ |
| EMC Shielding |
Shielded |
| Locking system |
M12 x 1.0mm screw |
| Tightening torque |
Recommended: 0.4 Nm / Max: 0.8 Nm |
| Material |
Male contact |
Brass |
| Female contact |
Non |
| Contact plating |
Au (Gold) |
| Insert |
PA66+GF, Black |
| Overmold |
TPU, Black |
| Screw nut |
Brass, CNC |
| Screw nut plating |
Nickel plated |
| O-ring |
Non |
| Cable |
Cable style |
CAT 6A (280260E) |
| Conductor material |
Bare Copper |
| Conductor cross-section |
26AWG*4P |
| Wire colors |
See wire list |
| Shielding |
AL+Braid |
| Sheath / insulation material |
PUR, Green |
| Outer diameter |
Ø7.0 ± 0.3mm |
| Bending radius (Static) |
≥10× outer Ø |
| Bending radius (Dynamic) |
≥15× outer Ø |
| Drag chain bending |
10 million |
| Cable length |
1000 +50/-10 mm (Excluding Connector) |
| Environmental |
Rated temperature |
Static: -40 ~ 80°C, Dynamic: -25 ~ 80°C |
| Protection degree |
IP67 |
| Environmental Compliance |
ROHS |
| Pollution degree |
3 |
RFQ Fields for This Page
- Target data rate requirement (specify in RFQ, e.g. Gigabit / 10G-class)
- Connector A end (RJ45 / M12 male-female / open)
- Connector B end
- Cable length and flex requirement (drag-chain Y/N)
- Target quantity and market region
- Certification requirement (if any)
- Drawing upload (for custom pinout)
FAQ
- Q: What is the difference between M12 X-Code and RJ45? A: M12 X-Code uses an industrial circular 8-pin connector rated IP67 when mated — suitable for harsh factory floors. RJ45 is standard office Ethernet (typically not sealed). Our assemblies bridge both worlds.
- Q: Can you do CAT6A with M12 X-Code? A: Yes — we configure shielded PUR cable for high-speed Ethernet capable runs. Exact bandwidth depends on your selected length and termination.
- Q: Is this suitable for drag chains? A: Select the
PUR-SF (high-flex double-shielded) option and specify your bend radius in the RFQ. We recommend confirming cycle count for your application.
