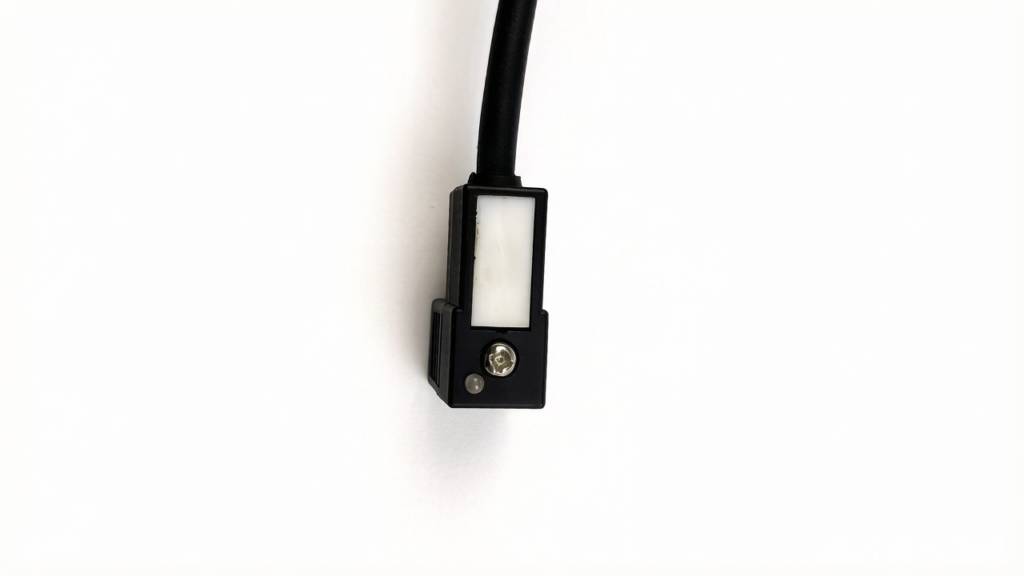

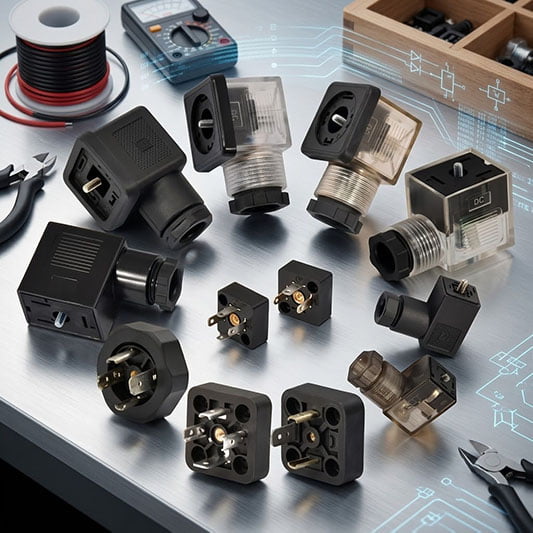

Form C Sub-Micro Solenoid Valve Connector Series — 8mm & 9.4mm Micro DIN Plugs
Ultra-miniature Form C solenoid valve connector family supporting 8 mm (industrial micro) and 9.4 mm (DIN standard micro) footprints — for the smallest valve applications including medical devices and precision pneumatics.
Typical Applications
- Miniature pneumatic valves in medical devices
- Compact process control valves
- Precision analytical instrumentation
- Micro-fluidic control systems
- Small-format solenoid replacement
Configuration Options (PN Builder)
| Step |
Dimension |
Options (label = code) |
| 1 |
Family Form |
Form C Micro = DV-C |
| 2 |
Spacing Matrix |
8mm Micro = 08 / 9.4mm DIN Micro = 09 |
| 3 |
Loop Voltage |
24V AC/DC = 24V / 110V / 230V = HV |
| 4 |
Connection Medium |
Molded PUR = PUR / Molded PVC = PVC / Micro Gland = PG7 |
| 5 |
Length |
1M / 3M / 5M / NONE (junction box) = NONE |
Example: DV-C-08-24V-LED-PUR-1M

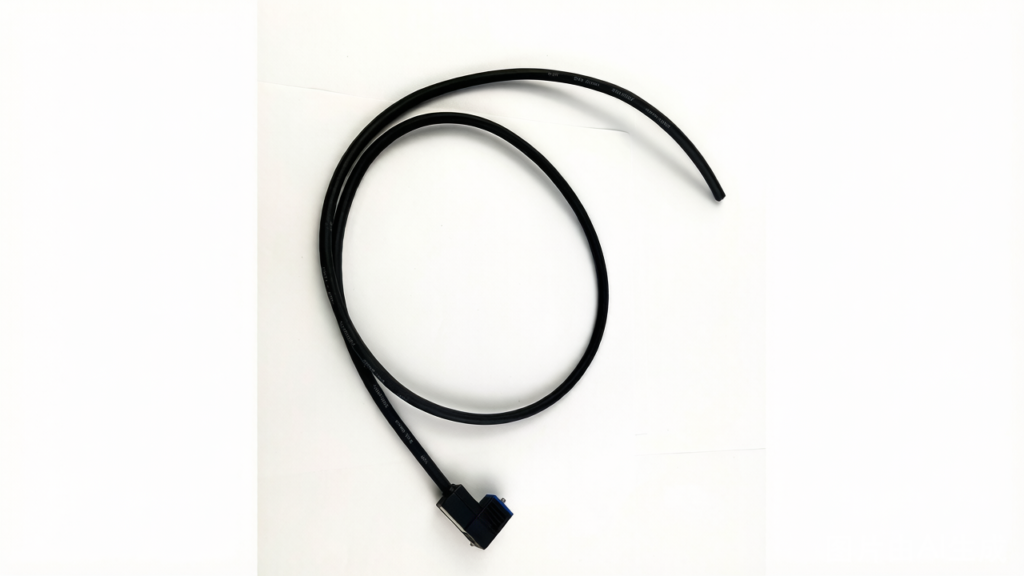

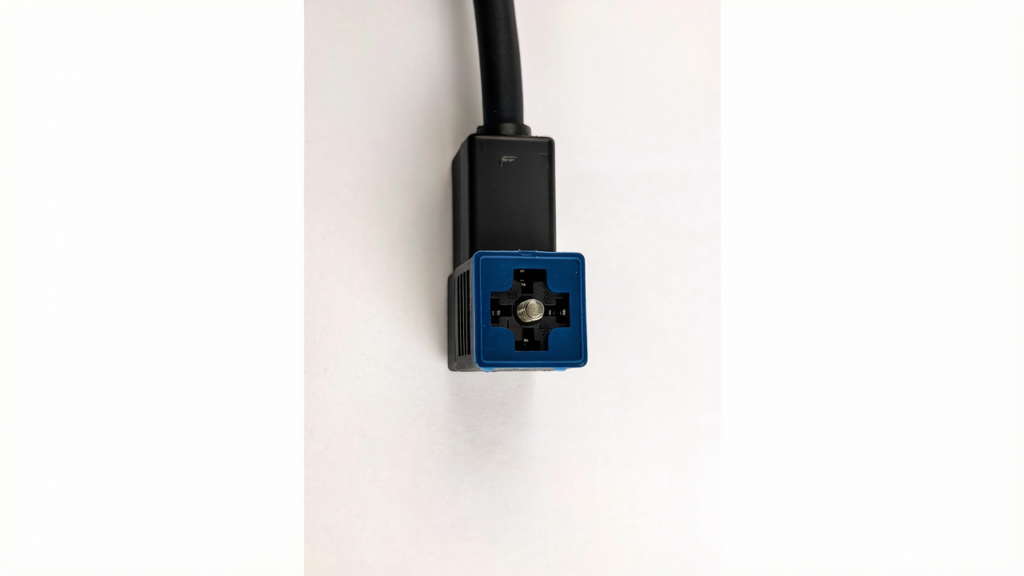

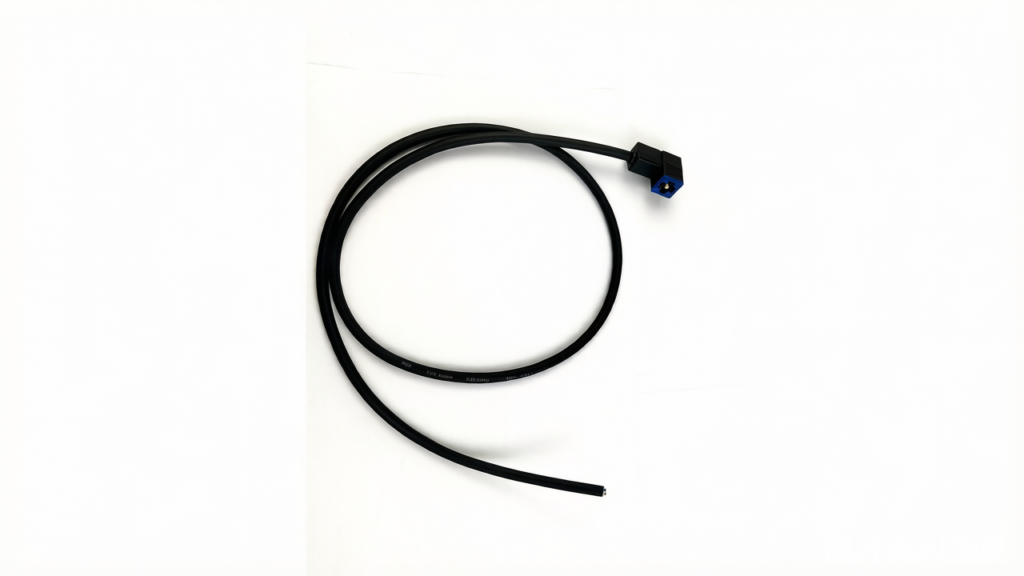

Technical Data
| Mechanical and Electrical |
| Reference standard |
EN 175301-803 |

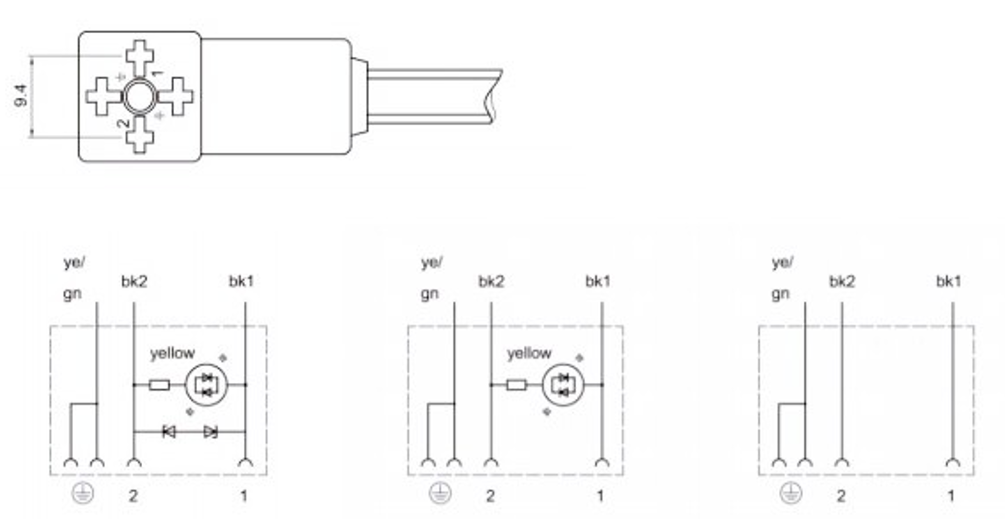

| Form factor |
Form C2 (9.4 mm pin spacing) |
| Operating voltage |
24V AC/DC |
| Rated current |
4A |
| LED indicator |
Red / Green |
| Protection degree |
IP67 |
| Material |
| Connector body |
PA 66 + 30% FV |
| Cable |
| Jacket material |
PVC / PUR |
| Conductor cross-section |
0.5 mm² / 0.75 mm² |
RFQ Fields
- Pin spacing (measure or specify 8/9.4 mm)
- Operating voltage
- Cable or gland preference
- Quantity and application description
FAQ
- Q: How small is Form C compared to Form A/B? A: Form C is significantly smaller — roughly half the footprint of Form A (18mm). It's designed for space-critical applications where even Form B (10-11mm) won't fit.
- Q: Will Form C fit my existing micro-valve? A: Measure the hole spacing on your valve coil. 8 mm is common for Asian-market micro-valves; 9.4 mm follows the DIN sub-miniature standard. Send us a photo if uncertain.
- Q: Do you offer LED on such small connectors? A: Yes — the LED indicator is integrated into the miniature housing. Availability depends on voltage and production run — confirm in RFQ.
Request Connector Configuration & Quote
