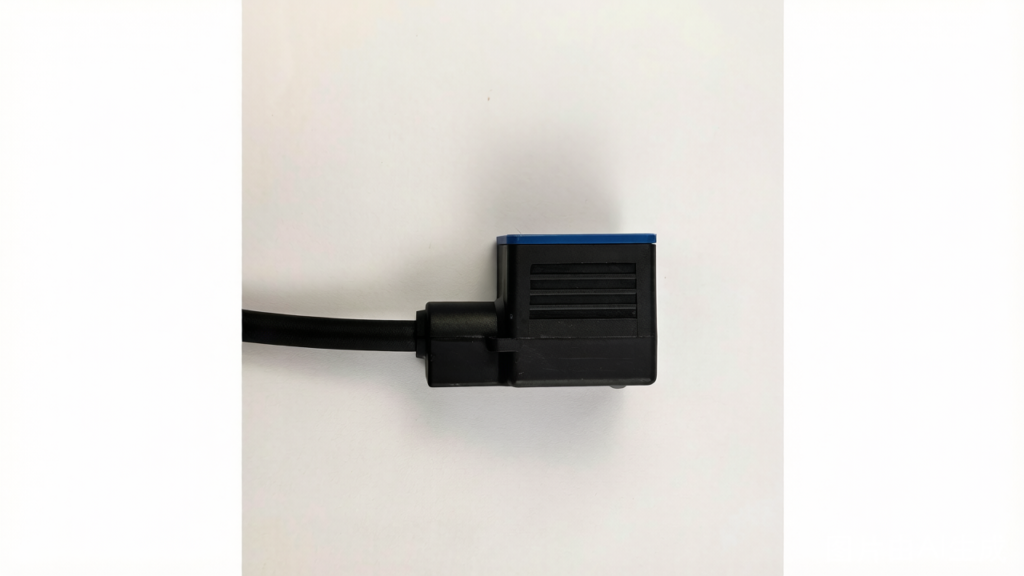

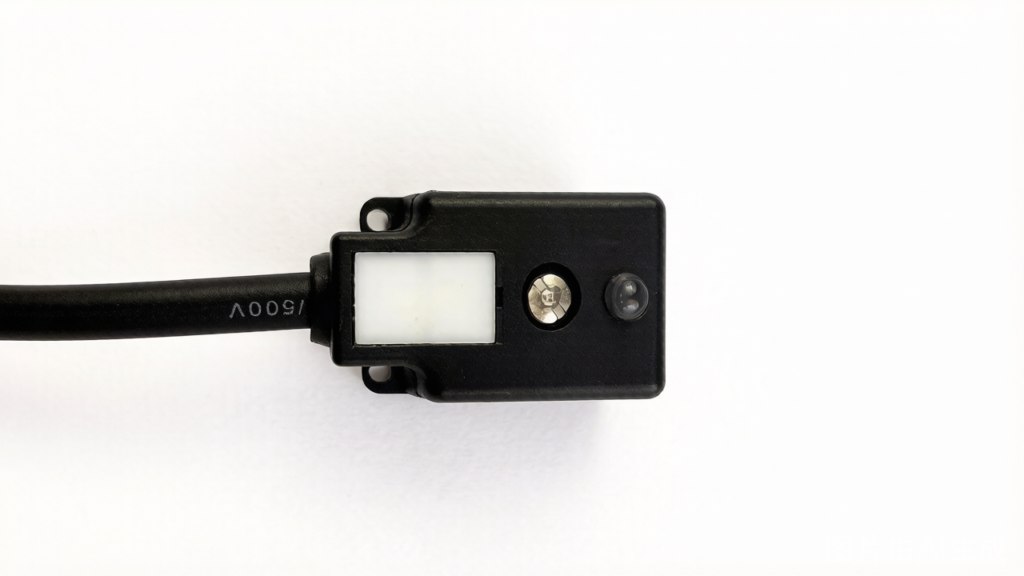

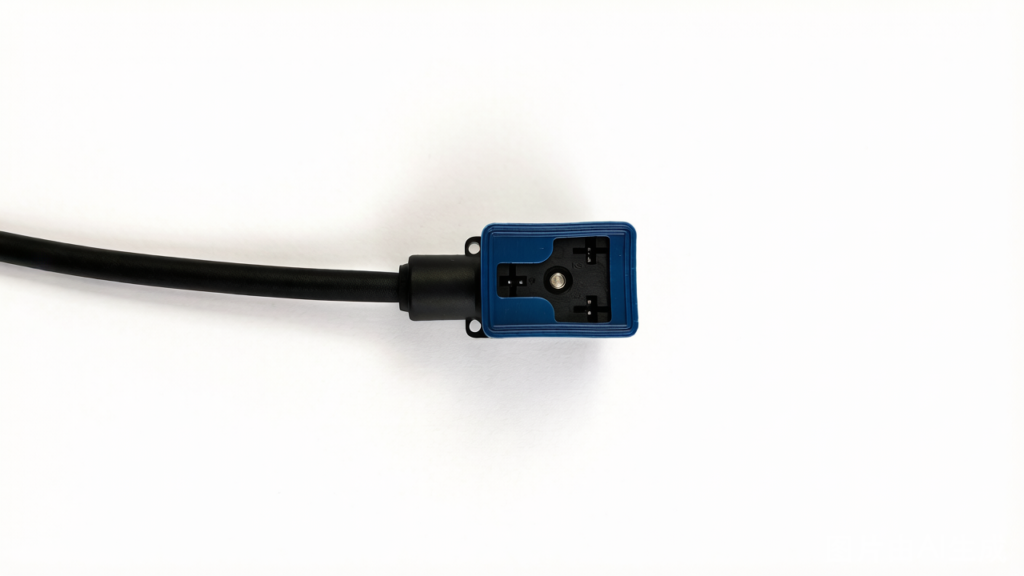

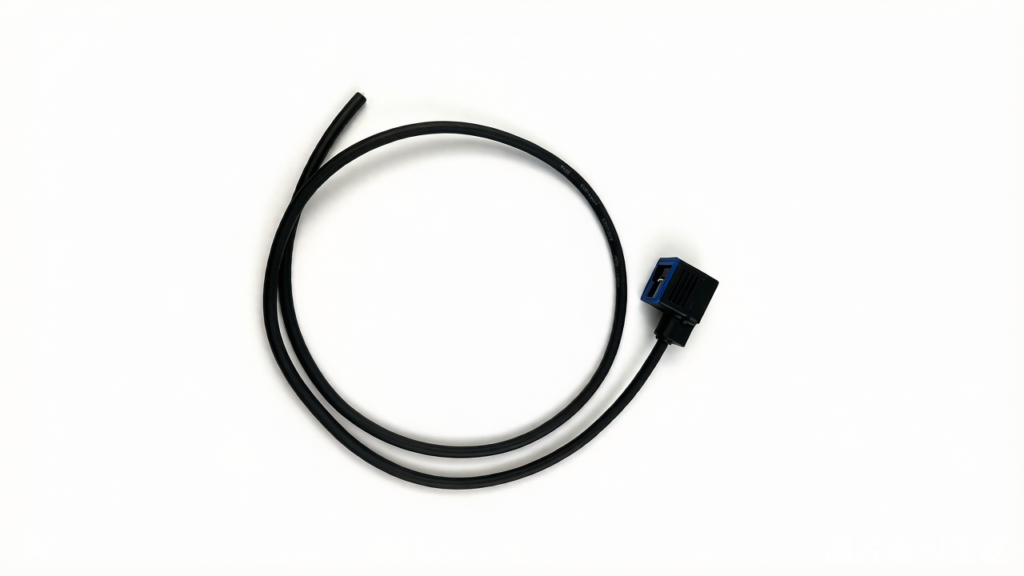

Form B Rectangular Solenoid Valve Connector Series — 10mm & 11mm DIN Plug Family
Versatile Form B rectangular solenoid valve connector family spanning both 10 mm (industrial) and 11 mm (DIN EN standard) formats — with LED visibility and surge protection options.
Typical Applications
- Compact hydraulic valves (rectangular coil footprint)
- Pneumatic mini-valve banks
- Space-constrained manifold designs
- Mobile equipment valve clusters
- Aftermarket valve connector replacement
Configuration Options (PN Builder)
| Step |
Dimension |
Options (label = code) |
| 1 |
Family Form |
Form B Series = DV-B |
| 2 |
Spacing |
10mm Industrial = 10 / 11mm DIN Standard = 11 |
| 3 |
Operating Voltage |
24V AC/DC = 24V / 230V AC = 230V |
| 4 |
Internal Circuit |
LED = LED / MOV (surge protected) = MOV |
| 5 |
Termination Style |
2m PUR molded = PUR-2M / Bare gland PG9 = PG9 |
Example: DV-B-10-24V-MOV-PG9
Technical Data
| Mechanical and Electrical |
| Reference standard |
EN 175301-803 |
| Form factor |
Form B (11 mm pin spacing) |
| Operating voltage |
24V AC/DC |
| Rated current |
4A |
| LED indicator |
Red / Green |
| Protection degree |
IP67 |
| Material |
| Connector body |
PA 66 + 30% FV |
| Cable |
| Jacket material |
PVC / PUR |
| Conductor cross-section |
0.5 mm² / 0.75 mm² |
RFQ Fields
- Pin spacing (10 mm or 11 mm — measure your valve if unsure)
- Voltage
- Circuit protection preference
- Cable length or gland-only
FAQ
- Q: How do I know if my valve needs 10 mm or 11 mm spacing? A: Measure the center-to-center distance between the two mounting holes on your valve coil. If it's approximately 10 mm, use
10. If closer to 11 mm, use 11. When in doubt, send us a photo.
- Q: Can I get a molded cable vs. bare connector? A: Both are available.
PUR-2M ships with 2 meters of molded PUR cable ready to plug in. PG9 gives you a bare connector with PG9 gland for your own custom wiring.
- Q: Does the LED work on 230V AC? A: LED indicator availability may vary by voltage — confirm your voltage and LED requirement in the RFQ so we can verify compatibility.
Request Connector Configuration & Quote
